  7. E-Bracket, Enclosed Power Relay, Square, 30 A, 6 Pins, Screw

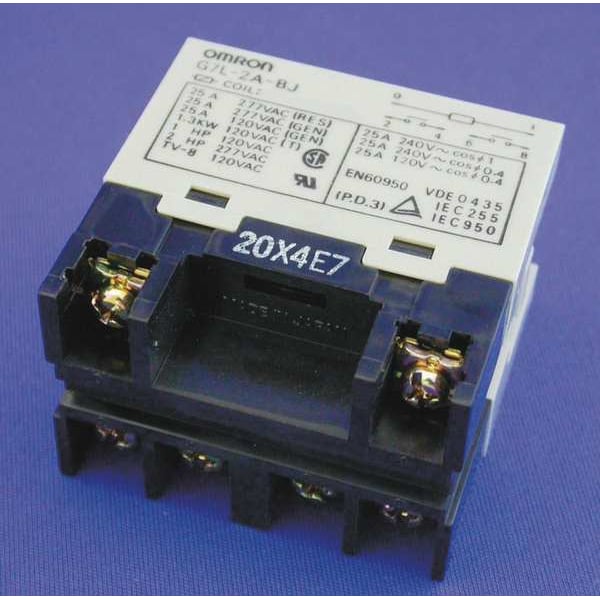

Omron E-Bracket, Enclosed Power Relay, Square, 30 A, 6 Pins, Screw G7L-2A-BJ-CB-DC24 - main

E-Bracket, Enclosed Power Relay, Square, 30 A, 6 Pins, Screw

  • Mfr # G7L-2A-BJ-CB-DC24

  • Zoro # G2977913

product price:  $22.05
/ea

Key Features

Mounting Style
E-Bracket
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G7L-2A-BJ-CB-DC24
Zoro #
G2977913
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
2.52 in
Dimensions
2.07"H, 1.44"W, 1.36"D
Body Height
2.07 in
Body Width
1.44 in
Flat Pin Width
0.25 in
Body Depth
1.36 in
Overall Depth
2.17 in
Mounting Hole Diameter
0.18 in

Details

Item
Enclosed Power Relay
Mounting Style
E-Bracket
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
24V DC
Current Rating
30 A
Contact Form
DPST-NO
Contact Rating (AC)
30 A @ 240V
HP @ 240V
3
Contact Amp Rating (Resistive)
25A @ 277VAC
Power Consumption - Relay
1.9 W
Coil Rating
2.5VA, 1.9W
Contact Amp Rating (Inductive)
25A @ 220VAC
Contact Material
Silver Tin Indium
Number of Poles
2
Hz - Electrical
50/60 Hz
HP @ 120V
1 1/2
Hz
50/60
Features
Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage
Standards
RoHS Compliant
Mechanical Operating Durability
1,000,000
Horsepower @ 120V AC
1 1/2 hp
Electrical Operating Durability
100,000
Minimum Operating Temperature
-13 Degrees F
Compatible with Manufacturer Model Number
P7LF-D, R99-07G7L
Horsepower @ 240V AC
3 hp
Maximum Switching Voltage
250V AC
Minimum Switching Current
100 mA
Status Indicator
No Indicator
Sealing
Semi-Sealed
Series
G7L Series
Weight
4.23 oz
Input Voltage
24V DC
Dielectric Strength
2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts
Maximum Operating Temperature
140 Degrees F
Push-To-Test Method
Push Button
Frequency
50/60 Hz
Resistance Properties
Flame-Resistant
Operating Current
25 A at 220V AC (Resistive Load/Inductive Load)
Response Time
30 msec
Coil Resistance
303 ohm
For Use With
Inrush Fluid Pump Control
Motor Rated
Yes
Power Consumption
1.9 W
Insulation Resistance
1,000 megaohm
Compatible Manufacturer Part Number
P7LF-D, R99-07G7L
Compatible Manufacturer Model Number
P7LF-D, R99-07G7L
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 240V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style E-Bracket, Push-To-Test Method Push Button, Body Depth 1.36 in, Body Height 2.07 in, Body Width 1.44 in, Coil Resistance 303 ohm
