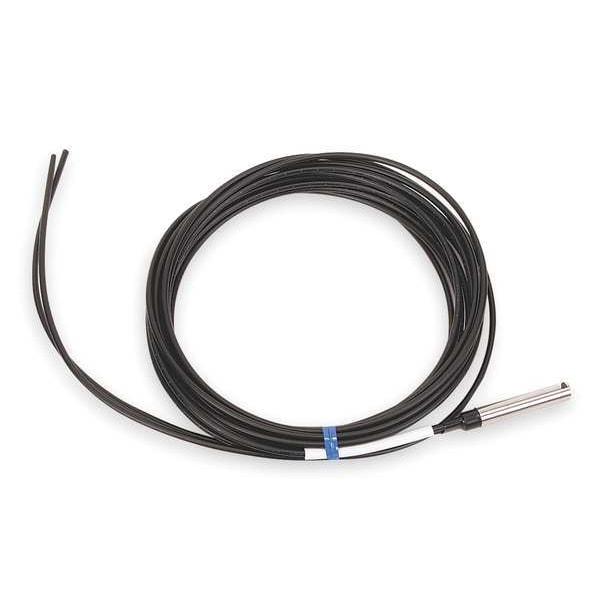

Fbr Optic Cabl, Diffuse, 80mm, 0.005mm dia.
Mfr # E32-D14L
Zoro # G3130574
product price:Â
$
179.99
/ea
Free Shipping & Returns
Key Features
Cable Diameter
2 mm
Standards
IEC, UL Listed
Sheath
Polyethylene
Fiber Material Core
Plastic
Cable Length
2 m
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E32-D14L
- Zoro #
- G3130574
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Diameter
- 2 mm
- Cable Length
- 2 m
- Cable Dia.
- 2 mm
- Min. Object Size
- 0.005mm dia
- Object Diameter - Minimum
- 0.005 mm
- Beam Diameter
- 6 mm
Details
- Item
- Fiber Optic Cable
- Standards
- IEC, UL Listed
- Sheath
- Polyethylene
- Fiber Material Core
- Plastic
- Temp. Range
- -40 Degrees to 158 Degrees F
- Max. Sensing Distance
- 80 mm
- Tip Type
- 1/4 in dia Cylinder Pin
- Sensing Method
- Diffuse
- Product Type
- Fiber Optic Cable
- Cable Connection Type
- 1/4 in dia Cylinder Pin
- Sensing Surface Orientation
- Side View
- Compatible with Brand
- Omron
- Compatible Product Type
- Fiber Optic Sensors
- Operating Temperature - Minimum
- -40 Degrees F
- Operating Temperature - Maximum
- 158 Degrees F
- Sensing Distance - Maximum
- 30 cm
- Sheath Material
- Polyethylene
Description
Fiber Optic Cable, Diffuse Sensing Method, Cable Length 2 m, Max. Sensing Distance 80 mm, Min. Object Size 0.005mm dia, Sheath Polyethylene, Fiber Material Core Plastic, Temp. Range -40 Degrees to 158 Degrees F, Cable Dia. 2 mm, Tip Type 1/4 in dia Cylinder Pin, Standards IEC, UL Listed
