  11. Force Guided Relay, 24V DC, 6 A, 14 Pins
Shop All Safety Monitoring Relays
Omron

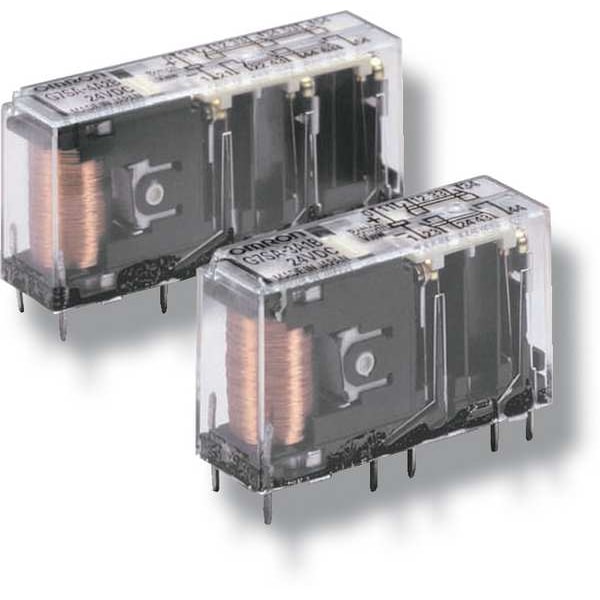

Force Guided Relay, 24V DC, 6 A, 14 Pins

product price: $53.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • AC Contact Rating - Relay 6 A @ 250 V
  • DC Contact Rating - Relay 6 A @ 30 V
  • Mounting - Relay Printed Circuit Board
  • Series G7SA Series
  • Coil Volts 24 V DC
See all product information

Product Information

Dimensions

Overall Height - Relay 1.1 in
Body Height - Relay 1.1 in
Body Width - Relay 2.36 in
Body Depth - Relay 0.51 in
Body Width 1.97 in
Body Height 0.51 in
Body Depth 0.94 in
Overall Depth 1.08 in
Flat Pin Width 0.02 in

Details

Item - Relay Force Guided Relay
AC Contact Rating - Relay 6 A @ 250 V
DC Contact Rating - Relay 6 A @ 30 V
Mounting - Relay Printed Circuit Board
Series G7SA Series
Item Force Guided Relay
Coil Volts 24 V DC
Power Consumption 500 mW
Contact Form 5PST-NO, SPST-NC
Environmental Protection IP40 / Flux Sealed
Response Time 10 msec
Contact Form - Relay 5PST-NO, SPST-NC
Number of Pins - Relay 14
Power Consumption - Relay 0.5 W
Standards CSA Certified, EN, UL Listed
For Use With P7SA-F-ND
IP Rating IP40
Socket Code P
Base Shape Square
Electrical Connection Type Pin
Coil Voltage 24V DC
Maximum Switching Current 6 A
Electrical Operating Durability 100,000
Mounting Style Socket
Maximum Switching Voltage 125V DC, 250V
Resistance Properties Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature -40 Degrees F
Weight 0.78 oz
Current Rating 6 A
Contact Rating (DC) 6 A @ 30V
Sealing Flux Sealed
Maximum Operating Temperature 185 Degrees F
Features Additional Push-In Plus Terminal Sockets, Interlocking Circuit Compatibility, Reinforced Insulation Between Inputs and Outputs, Reinforced Insulation Between Some Poles of Different Polarity, EN/IEC 61810-3,Certified by VDE, Machinery Directive, Simplified PWB Pattern Design
Mechanical Operating Durability 10,000,000
Dielectric Strength 1,500V AC between Contacts of Same Polarity, 2,500V AC between Contacts of Different Polarity, 4,000V AC between Coil and Contact, 4,000V AC between Contacts of Different Polarity
Socket Code Configurator Square / 14 / 0.02 in
Contact Material Gold Plated Silver Alloy
Compatible with Manufacturer Model Number P7SA-F-ND
Contact Rating (AC) 6 A @ 250V
Number of Pins 14
Electrical Connection 14-Pin Terminal
Coil Resistance 1,152 ohm
Relay Mounting Style Socket
Compatible Manufacturer Part Number P7SA-F-ND
Compatible with Manufacturer Part Number P7SA-F-ND
Compatible with Manufacturer Model Number [NEW] P7SA-F-ND
Compatible Manufacturer Model Number P7SA-F-ND
For Use with Mfr. Model Number P7SA-F-ND
For Use With Mfr. Model Number P7SA-F-ND

Description

Force Guided Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 5PST-NO, SPST-NC, Current Rating 6 A, Electrical Connection 14-Pin Terminal, Flat Pin Width 0.02 in, Number of Pins 14, IP Rating IP40, Sealing Flux Sealed, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 30V, Mounting Style Socket, Body Depth 0.94 in, Body Height 0.51 in, Body Width 1.97 in, Coil Resistance 1,152 ohm, Compatible with Manufacturer Model Number P7SA-F-ND, Contact Material Gold Plated Silver Alloy
