  13. General Purpose Relay, Square, 8.2 mA, 9.5 mA, 5 Pins, Plug-in
No Product Image Available

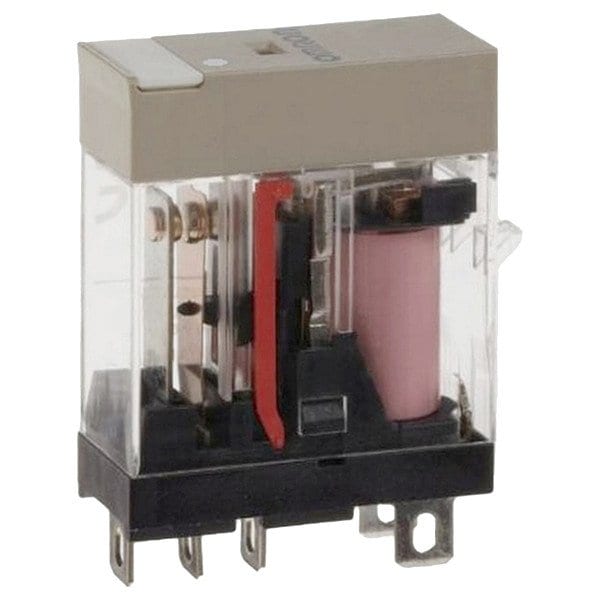

General Purpose Relay, Square, 8.2 mA, 9.5 mA, 5 Pins, Plug-in

  • Mfr # G2R-1-SN AC110(S)

  • Zoro # G710707517

product price: $32.65
/ea

Key Features

Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
5
Coil Voltage
110V AC
Current Rating
8.2 mA, 9.5 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2R-1-SN AC110(S)
Zoro #
G710707517
UPC #
4536854936517
Country of Origin
Malaysia

Dimensions

Body Height
1.14 in
Body Width
0.51 in
Flat Pin Width
4.75 mm
Body Depth
1.39 in
Overall Depth
1.59 in

Details

Item
General Purpose Relay
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
5
Coil Voltage
110V AC
Current Rating
8.2 mA, 9.5 mA
Contact Form
SPDT
Contact Rating (AC)
10 A @ 250V, 7.5 A @ 250V
Contact Rating (DC)
10 A @ 30V, 5 A @ 30V
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Standards
CSA 22.2 No.0, CSA 22.2 No.14 (File No.LR31928), IEC/VDE (Certificate No.40015012 EN 61810-1), UL 508 (File No.E41643)
Maximum Operating Temperature
70 Degrees C
Response Time
15 msec
Compatible with Manufacturer Model Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
Minimum Operating Temperature
-40 Degrees C
Insulation Resistance
1,000 megaohm
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
For Use With
Sockets
Weight
20 g
Maximum Switching Voltage
125V DC, 380V AC
Power Consumption
0.9 VA
Status Indicator
LED and Mechanical Flag
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Minimum Switching Current
10 A
Coil Resistance
5,566 ohm
Series
G2RS
Mechanical Operating Durability
10,000,000, 20,000,000
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Compatible Manufacturer Part Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
Compatible Manufacturer Model Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E

Description

General Purpose Relays, Base Shape Square, Coil Voltage 110V AC, Contact Form SPDT, Electrical Connection Plug-In, Flat Pin Width 4.75 mm, Number of Pins 5, Status Indicator LED and Mechanical Flag, Contact Rating (AC) 10 A @ 250V, 7.5 A @ 250V, Contact Rating (DC) 10 A @ 30V, 5 A @ 30V, Body Depth 1.39 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 5,566 ohm, Compatible Manufacturer Part Number P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
