Shop OMRON

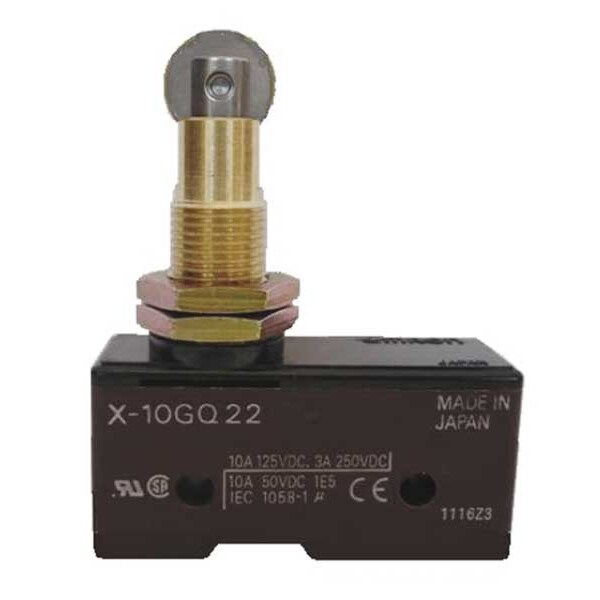

Industrial Snap Action Switch, Cross Roller, Panel Mount, Plunger Actuator, SPDT

  • Mfr # X-10GQ22

  • Zoro # G1768627

product price:
$
22.15
/ea

Key Features

Actuator Type - Snap Action Switch
Roller, Panel Mount, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.89 in
Width - Snap Action Switch
1.94 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
X-10GQ22
Zoro #
G1768627
UPC #
-
Country of Origin
United States
Item
Snap Action Switch
Actuator Type - Snap Action Switch
Roller, Panel Mount, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Type of Actuator
Panel Mount Cross Roller Plunger
Contact Form
1NO/1NC
Over Travel
0.14 in
Watertight - Snap Action Switch
No
Standards
CE, CSA, RU
Housing Material
Phenolic
Max. Pretravel
0.035 in
Terminal Type
Solder
Voltage Rating
125VDC
Differential Travel
0.007 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Release Force
4.03 ozf
Series
X
Electrical Connection - Snap Action Switch
Solder Lug
Current Rating
10A
Operating Force
18 oz
Includes
Threaded Neck with Nuts
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Electrical Connection
Solder Lug
Pretravel
0.217 in
Differential Travel - Maximum
0.0071 in
Roller Adjustability
Fixed
Operating Force - Minimum
5 N
Roller Position
Offset
Roller Material
Stainless Steel
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Panel-Mounted Roller Plunger
Body Material
Phenolic
Overtravel
0.005 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
5 N
Center Mounting Hole Distance
1 in
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Roller, Panel Mount, Plunger, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.89 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
