  13. Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT

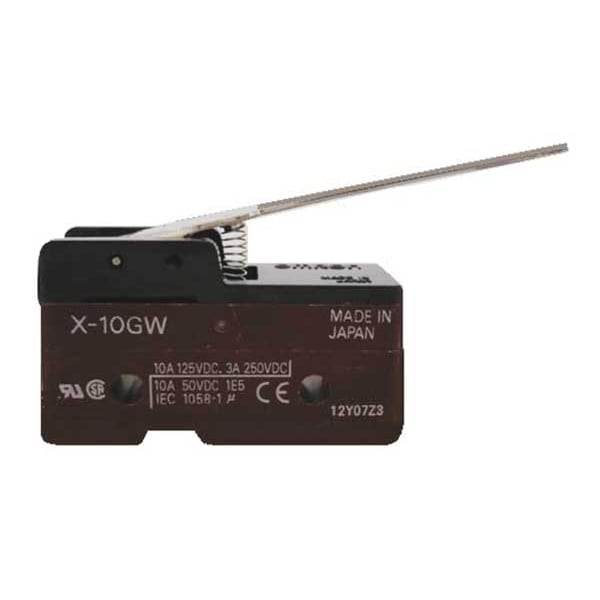

Omron Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT X-10GW - main

Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT

  • Mfr # X-10GW

  • Zoro # G1836396

product price: $17.79
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
X-10GW
Zoro #
G1836396
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Actuator Length
2.50"
Height
1.05"
Mounting Dimension
1.00" Centers
Length
1.94"
Body Height
0.69 in
Body Width
2.93 in
Overall Height
0.69 in
Overall Depth
1.61 in
Mounting Hole Diameter
3/16 in
Lever Actuator Length
2.5 in
Overall Width
2.93 in
Body Depth
1.61 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Standards
CE, CSA, RU
Voltage Rating
125VDC
Max. Pretravel
0.563 in
Release Force
0.18 ozf
Operating Temp. Range
-13 Degrees to 176 Degrees F
Over Travel
0.19 in
Operating Force
3.88 oz
Series
X
Watertight - Snap Action Switch
No
Differential Travel
0.154 in
Electrical Connection - Snap Action Switch
Solder Lug
Type of Actuator
Hinge Lever
Housing Material
Phenolic
Current Rating
10A
Contact Form
1NO/1NC
Terminal Type
Solder
Includes
Stainless-Steel Actuator
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Pretravel
0.563 in
Operating Temperature - Maximum
176 Degrees F
Roller Adjustability
Fixed
Differential Travel - Maximum
0.1535 in
Overtravel
0.189 in
Center Mounting Hole Distance
1 in
Operating Force - Minimum
1.08 N
Body Material
Phenolic
Operating Force - Maximum
1.08 N
Actuator Style
Hinge Lever
Electrical Connection
Solder
Operating Temperature - Minimum
-13 Degrees F

Description

Snap Action Switch, Hinge, Lever, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
