  13. Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT

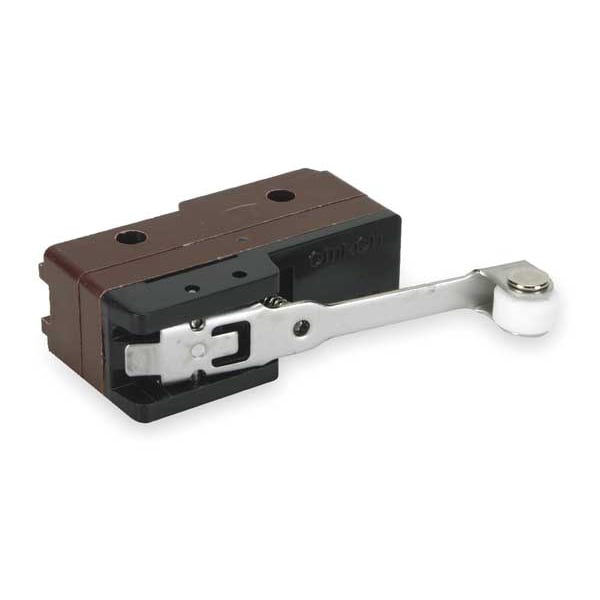

Omron Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT X-10GW2 - main

Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT

  • Mfr # X-10GW2

  • Zoro # G1557656

product price: $17.39
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
X-10GW2
Zoro #
G1557656
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Length
1.94"
Actuator Length
1.91"
Height
1.05"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Roller Diameter
0.37 in
Overall Width
2.49 in
Overall Depth
1.85 in
Body Width
2.49 in
Lever Actuator Length
1.91 in
Body Depth
1.85 in
Mounting Hole Diameter
3/16 in
Overall Height
0.69 in
Body Height
0.69 in
Roller Width
0.16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Max. Pretravel
0.359 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Contact Form
1NO/1NC
Current Rating
10A
Watertight - Snap Action Switch
No
Differential Travel
0.118 in
Over Travel
0.16 in
Terminal Type
Solder
Voltage Rating
125VDC
Type of Actuator
Hinge Roller Lever
Standards
CE, CSA, RU
Operating Force
5.12 oz
Release Force
0.76 ozf
Series
X
Electrical Connection - Snap Action Switch
Solder Lug
Includes
Stainless-Steel Actuator
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Operating Temperature - Minimum
-13 Degrees F
Roller Material
Plastic
Differential Travel - Maximum
0.0669 in
Body Material
Phenolic
Roller Adjustability
Fixed
Electrical Connection
Solder
Actuator Style
Hinge Roller Lever
Operating Force - Minimum
1.42 N
Overtravel
0.157 in
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
176 Degrees F
Roller Position
Offset
Operating Force - Maximum
1.42 N
Pretravel
0.118 in

Description

Snap Action Switch, Hinge Roller, Lever, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
