Shop OMRON

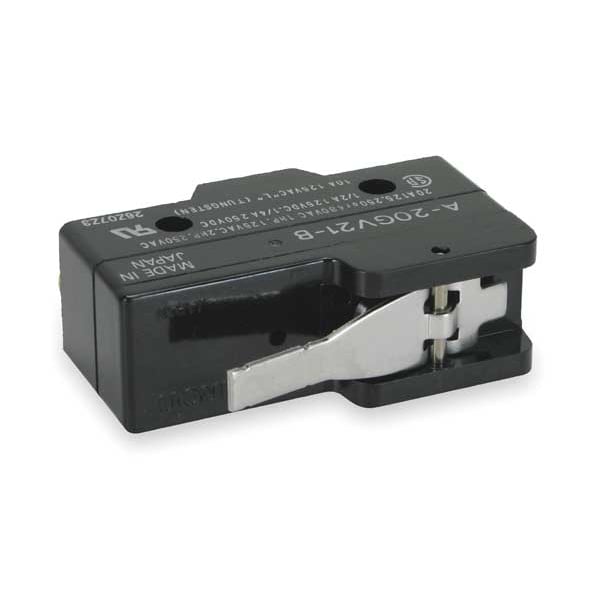

Snap Action Switch, Hinge, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GV21-B

  • Zoro # G1638935

product price:
$
17.19
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A-20GV21-B
Zoro #
G1638935
UPC #
-
Country of Origin
Japan
Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Current Rating
20A
Standards
CSA, UL Listed
Max. Pretravel
0.256 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Differential Travel
0.047 in
Over Travel
0.05 in
Housing Material
Phenolic
Watertight - Snap Action Switch
No
Type of Actuator
Short Hinge Lever
Release Force
1.48 ozf
Voltage Rating
125/250/480VAC
Terminal Type
Screw
Electrical Connection - Snap Action Switch
Screw
Operating Force
5.65 oz
Series
A
Contact Form
1NO/1NC
AC Contact Rating
20 A @ 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Fixed
Overtravel
0.047 in
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Roller Lever
Differential Travel - Maximum
0.0472 in
Body Material
Phenolic
Electrical Connection
Screw Terminal
Center Mounting Hole Distance
1 in
Operating Force - Maximum
3.92 N
Operating Force - Minimum
1.57 N
Pretravel
0.256 in
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Hinge, Lever, Short, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.12 in, Height - Snap Action Switch 1.16 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
