  13. Latching Relay, 11 Pins, Octal, 24VAC

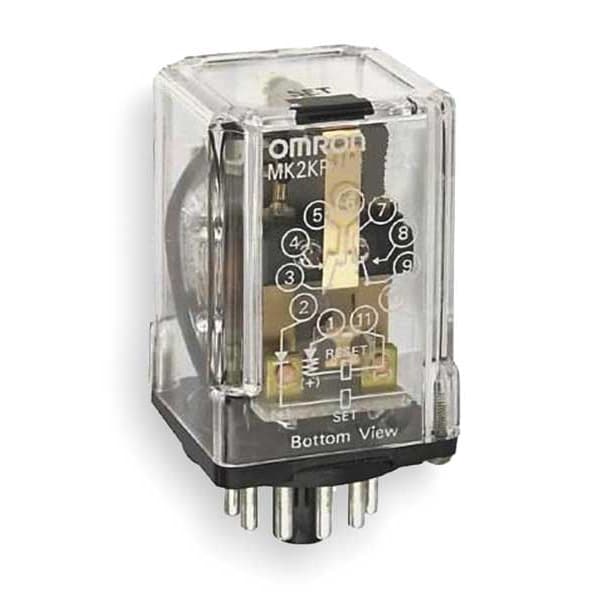

Omron Latching Relay, 11 Pins, Octal, 24VAC MK2KP-UA-AC24 - main

Latching Relay, 11 Pins, Octal, 24VAC

  • Mfr # MK2KP-UA-AC24

  • Zoro # G0368654

product price: $59.99
/ea

Key Features

Coil Volts
24V AC
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
10A @ 28V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
11
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MK2KP-UA-AC24
Zoro #
G0368654
UPC #
-
Country of Origin
Japan

Dimensions

Body Width - Relay
1.36 in
Body Depth - Relay
1.36 in
Body Height - Relay
2.07 in
Overall Height - Relay
1.85 in
Overall Depth
1.85 in
Body Height
1.36 in
Body Width
1.36 in
Body Depth
2.07 in

Details

Item
Latching Relay
Coil Volts
24V AC
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
10A @ 28V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Mounting - Relay
Plug In
HP @ 120V
Not Rated
HP @ 240V
Not Rated
Contact Form
DPDT
Push To Test
No
Contact Rating
10A @ 250VAC/28VDC
Base Type
Octal
Socket
Mfr. No. PF113A-E
Contact Material
Silver
Socket Code
B
Status Indicator
Mechanical Flag
Item - Relay
Latching Relay
Pins
11
Power Consumption - Relay
1.5 VA
Weight
3 oz
Motor Rated
Not Rated - Not Rated
Minimum Operating Temperature
14 Degrees F
Push-To-Test Method
No Button
Series
MK Series
Mounting Style
Plug-In
Contact Rating (AC)
2 A @ 240V, 5 A @ 240V
Horsepower @ 120V AC
Not Rated
Mechanical Operating Durability
5,000,000
Compatible with Manufacturer Model Number
PF113A-E
Resistance Properties
Shock-Resistant, Vibration-Resistant
Power Consumption
1.5 VA
Number of Pins
11
Contact Rating (DC)
2.5 A @ 24V, 3 A @ 24V
Electrical Operating Durability
500,000
Base Shape
Octal
Coil Voltage
24V AC
Dielectric Strength
1,000V AC Between Contacts of Same Polarity, 1,000V AC Between Set/Reset Coils, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity
Horsepower @ 240V AC
Not Rated
Maximum Operating Temperature
104 Degrees F
Pin Shape
Flat
Frequency
50/60 Hz
Sealing
Enclosed
Current Rating
5 A
Operating Current
2 A at 220V AC (Inductive Load), 2.5 A at 24V DC (Inductive Load), 3 A at 24V DC (Resistive Load), 5 A at 220V AC (Resistive Load)
For Use With
Memory and Signaling Circuits
Insulation Resistance
100 megaohm
Coil Resistance
105 ohm
Electrical Connection
Quick-Connect
Compatible Manufacturer Part Number
PF113A-E
Compatible Manufacturer Model Number
PF113A-E
For Use With Mfr. Model Number
PF113A-E
Compatible with Manufacturer Model No.
PF113A-E
Compatible with Mfr. Model No.
PF113A-E
For Use with Mfr Model Number
PF113A-E
Compatible Pump Manufacturer Part Number
PF113A-E
Compatible Mfr. Model Number
PF113A-E

Description

Latching Relay, Base Shape Octal, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width Not Applicable, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 2 A @ 240V, 5 A @ 240V, Contact Rating (DC) 2.5 A @ 24V, 3 A @ 24V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.07 in, Body Height 1.36 in
