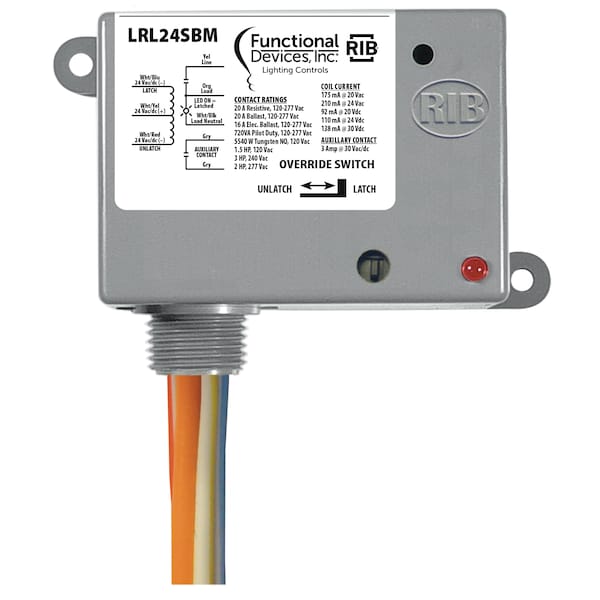

Mechanically Latching Lighting Rly, 24 Vac/dc Coil, SPST relay w/5540W
Mfr # LRL24SBM
Zoro # G1650944
product price:Â
$
119.45
/ea
Free Shipping & Returns
Key Features
Color
Gray
Voltage
24Vac/dc
Maximum Pulse Length
30 seconds
Auxiliary Contact
3 Amp @ 30 Vac/dc max.
Approvals
UL Listed, UL60947, C-UL, CE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LRL24SBM
- Zoro #
- G1650944
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Pulse Length
- 30 seconds
- Dimensions
- 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
Details
- Color
- Gray
- Voltage
- 24Vac/dc
- Auxiliary Contact
- 3 Amp @ 30 Vac/dc max.
- Approvals
- UL Listed, UL60947, C-UL, CE
- Contact Closed
- LED On - Voltage Detected on Load Wire (LRL12BM & SBM)
- Humidity Range
- 5 to 95% (noncondensing)
- Operate Time
- 50ms
- Coil Current
- 182 mA @ 10 Vac 250 mA @ 12 Vac 165 mA @ 10 Vdc 198 mA @ 12 Vdc 250 mA @ 15 Vdc
- Operating Temperature
- -30 to 140° F
- Latch / Unlatch
- Min. 10 Vdc / 11 Vac
- Wires
- 16", 600V Rated
- Housing Rating
- UL Accepted for Use in Plenum, NEMA 1
- Contact Ratings
- 20 Amp Resistive @ 120-277 Vac 20 Amp Ballast @ 120-277 Vac 16 Amp Electronic Ballast @ 120-277 Vac 5540 Watt Tungsten @ 277 Vac 720 VA Pilot Duty @ 120-277 Vac 2 HP @ 277 Vac 3 HP @ 240 Vac 1.5 HP @ 120 Vac
- Expected Relay Life
- 1 million cycles minimum mechanical
- No. of Relays & Contact Type
- One (1) SPST Latching Relay, Dual Coil
- Override Switch
- Yes
- Gold Flash
- No
Description
Mechanically Latching Lighting Relay, 24 Vac/dc Coil, SPST relay with 5540W; 277Vac In and, 20A; 120-277Vac Bal and 16A; 120-277Vac EB ratings; Override Switch, Status LED, Auxiliary Output, NEMA 1 Enclosure
