  13. Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

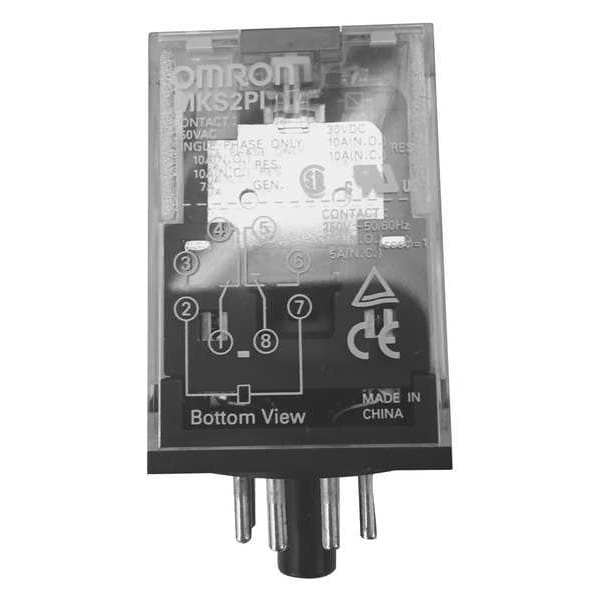

Omron Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in MKS2PINDC12 - main

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

  • Mfr # MKS2PINDC12

  • Zoro # G1724904

product price: $17.79
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MKS2PINDC12
Zoro #
G1724904
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.5 in
Body Depth
2.07 in
Body Height
1.36 in
Body Width
1.36 in
Overall Depth
2.5 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
12V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 250V, 5 A @ 250V, 7 A @ 250V
Contact Rating (DC)
10 A @ 30V (NO), 5 A @ 30V (NC)
Status Indicator
LED and Mechanical Flag
Standards
RoHS Compliant, UL and IEC (TUV) Certified
Features
Diode Surge Supression, Varistor Surge Suppression
Socket
Mfr. No. PF083A-E
HP @ 120V
Not Rated
HP @ 240V
Not Rated
Socket Code
A
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Contact Material
Silver Tin Indium
Power Consumption - Relay
1.4 W
Series
MK-S Series
Maximum Operating Temperature
140 Degrees F
Weight
3.17 oz
Operating Current
10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load)
Electrical Operating Durability
100,000
Coil Resistance
107 ohm
Push-To-Test Method
Lockable Push Test Button
Sealing
Enclosed
Horsepower @ 120V AC
Not Rated
Horsepower @ 240V AC
Not Rated
Response Time
30 msec
Power Consumption
1.4 W
Frequency
50/60 Hz
Maximum Switching Voltage
250V AC, 250V DC
Compatible with Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
Minimum Operating Temperature
-13 Degrees F
Motor Rated
Not Rated - Not Rated
Mechanical Operating Durability
5,000,000
Dielectric Strength
1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity
Pin Shape
Round
Insulation Resistance
100 megaohm
Resistance Properties
Shock-Resistant, Vibration-Resistant
Input Voltage
12V DC
Compatible Manufacturer Part Number
PF083A, PF083A-D, PF083A-E
Compatible Manufacturer Model Number
PF083A, PF083A-D, PF083A-E

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO), Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC), Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In
