- Item
- Push Button Operator
- Push Button Style
- Mushroom Head
- Maintained Action Release
- Push/Pull
- Operator Illumination
- Non-Illuminated
- Head Color
- Red
- Head Material
- Polycarbonate
- Terminal Connection
- Screw Clamp
- Standards
- EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C 4520, UL 508, EN/IEC 60947-5-4, IEC 60364-5-53
- Material
- polycarbonate
- Cable Entry
- 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
- Operating Travel
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Operators Description
- red unmarked 1 NC
- Product Or Component Type
- complete control station
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m

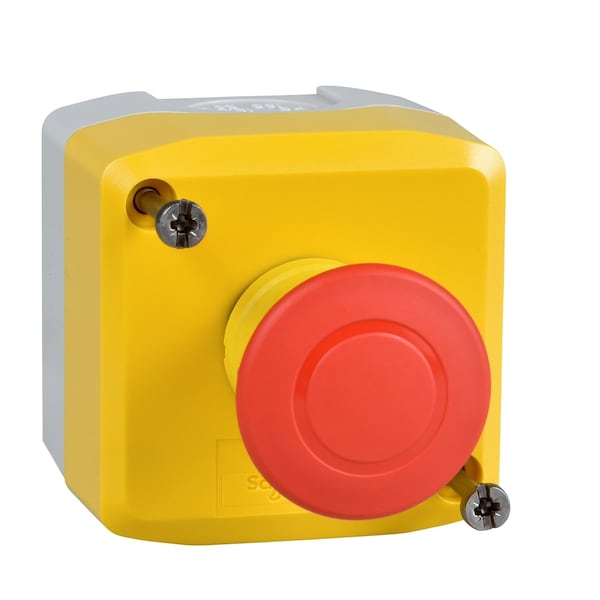

- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 1 NC unmarked
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Electrical Reliability
- Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Overvoltage Category
- class II IEC 60536
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Reset
- push-pull
- Control Station Application
- emergency stop function || emergency switching off function
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- Ambient Air Temperature For Operation
- -40-70°C
- Mechanical Durability
- 300000 cycles
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Operator Profile
- 1 mushroom head push-button
- Device Short Name
- XALK
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Ik Degree Of Protection
- IK03 EN 50102
- Contact Operation
- slow-break
- Tightening Torque
- 0.8-1.2 N.m EN/IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Ambient Air Temperature For Storage
- -40-70°C
- Operating Force
- 50 N
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
- Colour Of Cover
- yellow RAL 1021)
- Contacts Material
- silver alloy (Ag/Ni)
- Range of Product
- Harmony XALK
