  13. Plug-In, General Purpose Relay, Square, 7 A, 8 Pins, Quick Connect

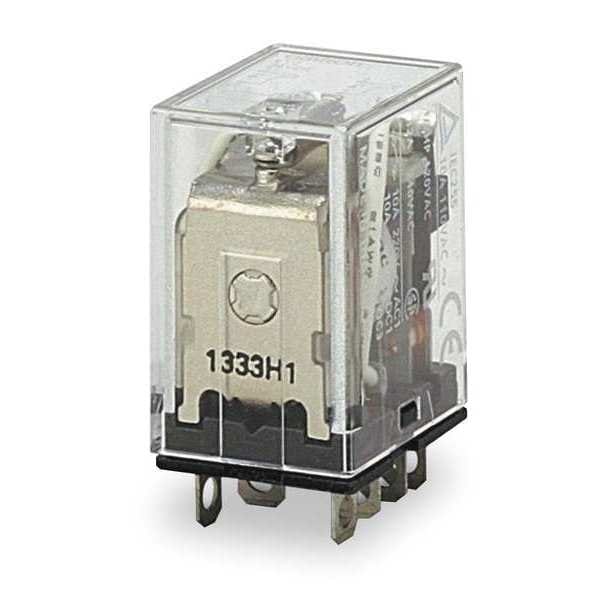

Omron Plug-In, General Purpose Relay, Square, 7 A, 8 Pins, Quick Connect LY2Z-DC12 - main

Plug-In, General Purpose Relay, Square, 7 A, 8 Pins, Quick Connect

  • Mfr # LY2Z-DC12

  • Zoro # G2297653

product price: $22.35
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LY2Z-DC12
Zoro #
G2297653
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height - Relay
1.67 in
Overall Depth
1.67 in
Flat Pin Width
0.197 in
Body Depth
1.42 in
Body Height
1.1 in
Body Width
0.85 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
Current Rating
7 A
Contact Form
DPDT
Contact Rating (AC)
5 A @ 120V
Contact Rating (DC)
5 A @ 24V
Status Indicator
No Indicator
Socket
Mfr. No. PTF08A-E
Socket Code
J
Standards
CE Certified, CSA Certified, TUV Certified, UL Listed
HP @ 240V
Not Rated
Green Environmental Attribute
RoHS 2011/65/EU Compliant
HP @ 120V
1/3 hp
Contact Material
Silver Alloy
Power Consumption - Relay
0.9 W
Features
Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts
Input Voltage
12V DC
Horsepower @ 240V AC
Not Rated
Electrical Operating Durability
500,000
Sealing
Enclosed
Operating Current
4 A at 110V AC (Inductive Load), 4 A at 24V DC (Inductive Load), 5 A at 110V AC (Resistive Load), 5 A at 24V DC (Resistive Load)
Pin Shape
Flat
Motor Rated
Yes
Coil Resistance
160 ohm
Maximum Switching Voltage
125V DC, 250V AC
Insulation Resistance
100 megaohm
Weight
1.41 oz
Push-To-Test Method
Manual Push Test Button
Horsepower @ 120V AC
1/3 hp
Maximum Operating Temperature
131 Degrees F
Response Time
25 msec
Resistance Properties
Shock-Resistant, Vibration-Resistant
Dielectric Strength
1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity
Compatible with Manufacturer Model Number
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
Minimum Operating Temperature
-13 Degrees F
Power Consumption
0.53 W
Series
LY Series
Mechanical Operating Durability
100,000,000
Compatible Manufacturer Part Number
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
Compatible Manufacturer Model Number
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 7 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 4 A @ 120V, 5 A @ 120V, Contact Rating (DC) 4 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.42 in, Body Height 1.1 in
