  13. Relay, 8Pin, DPDT, 10A, 24VDC

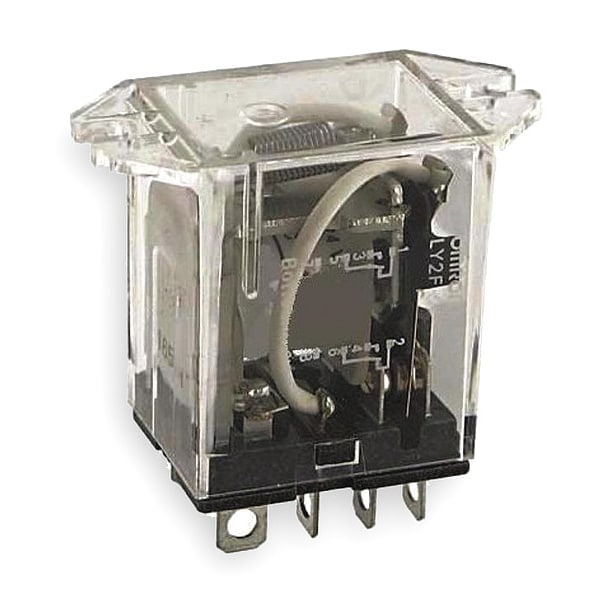

Omron Relay, 8Pin, DPDT, 10A, 24VDC LY2F-DC24 - main

Relay, 8Pin, DPDT, 10A, 24VDC

  • Mfr # LY2F-DC24

  • Zoro # G3062096

product price: $9.95
/ea
Sold in multiples of 2 for $19.90

Key Features

AC Contact Rating - Relay
10A @ 120V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Mounting - Relay
Top Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LY2F-DC24
Zoro #
G3062096
UPC #
-
Country of Origin
Indonesia

Dimensions

Body Depth - Relay
1.14 in
Overall Height - Relay
1.65 in
Body Width - Relay
0.89 in
Body Height - Relay
1.4 in
Mounting Hole Diameter
2 in
Body Depth
1.39 in
Body Width
0.88 in
Body Height
1.73 in
Overall Depth
1.66 in

Details

Item
Flange Mount Relay
Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 120V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Mounting - Relay
Top Flange
Power Consumption - Relay
0.9 W
Contact Material
Silver Alloy
Item - Relay
Flange Mount Relay
Electrical Connection
Plug-In Terminal
Pins
8
Standards
CE Certified, CSA Certified, TUV Certified, UL Listed, VDE Approved
Features
Arc Barrier Equipped
Mounting
Top
Status Indicator
None
HP @ 120V
1/3 hp
Contact Rating
10A @ 110VAC/24VDC
Contact Form
DPDT
Push To Test
Manual
Response Time
25 msec
Power Consumption
0.9 VA
Number of Terminals
8
Maximum Operating Temperature
131 Degrees F
Push-To-Test Method
Manual
Horsepower @ 120V AC
1/3 hp
Maximum Switching Capacity
0.9 VA
Number of Pins
8
Current Rating
10 A
Coil Resistance
650 ohm
Operating Current
10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)
Weight
1.41 oz
Mechanical Operating Durability
50,000,000
Motor Rated
Yes
Electrical Operating Durability
500,000
Contact Rating (DC)
10 A @ 24V, 5 A @ 24V
Maximum Switching Voltage
125V AC/DC, 250V AC/DC
Contact Rating (AC)
10 A @ 120V, 7.5 A @ 120V
Base Shape
Square
Sealing
Enclosed
Frequency
50/60 Hz
Mounting Style
Top Flange
Dielectric Strength
1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity
Insulation Resistance
100 megaohm
Coil Voltage
24V DC
Minimum Operating Temperature
-13 Degrees F
Series
LY Series

Description

Flange Mount Relay, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In Terminal, Number of Pins 8, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Top Flange, Push-To-Test Method Manual, Base Shape Square, Body Depth 1.39 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 650 ohm, Contact Material Silver Alloy
