Shop OMRON

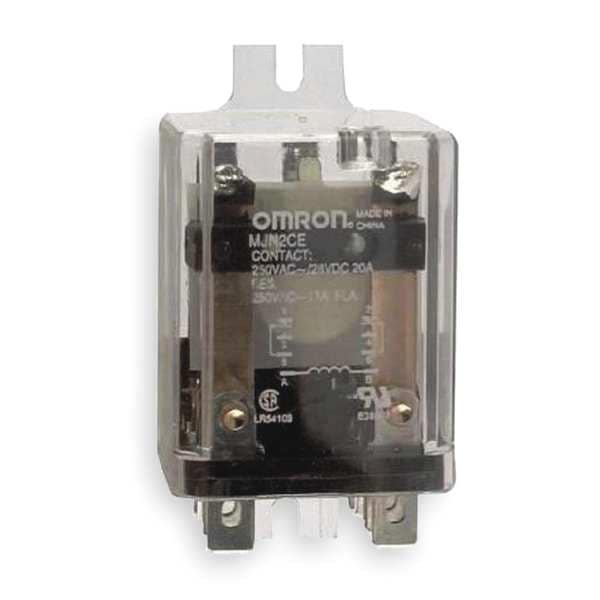

Side Flange, Enclosed Power Relay, Octal, 20 A, 8 Pins, Quick Connect

  • Mfr # MJN2CE-DC12

  • Zoro # G2242091

CAD Available
product price:
$
34.49
/ea

Key Features

CAD Drawing
Mounting Style
Side Flange
Electrical Connection
Quick Connect
Base Shape
Octal
Number of Pins
8
Coil Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MJN2CE-DC12
Zoro #
G2242091
UPC #
-
Country of Origin
China
Item
Enclosed Power Relay
Mounting Style
Side Flange
Electrical Connection
Quick Connect
Base Shape
Octal
Number of Pins
8
Coil Voltage
12V DC
Current Rating
20 A
Contact Form
DPDT
Contact Rating (AC)
20 A @ 277V
Contact Rating (DC)
20 A @ 28V
Features
General Purpose Relays, Non-Latching
Standards
CSA Certified, UL Listed
Number of Poles
2
Contact Material
Silver Alloy
Hz
50/60
Contact Amp Rating (Inductive)
20A
Power Consumption - Relay
1.2 W
Contact Amp Rating (Resistive)
10A @ 480/600VAC, 20A @ 28VDC
Motor Rated
Yes
Dielectric Strength
2,500V AC, 750V AC
Horsepower @ 120V AC
3/4 hp
Series
MJN Series
Operating Current
20 A
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Maximum Operating Temperature
158 Degrees F
Minimum Operating Temperature
-49 Degrees F
Horsepower @ 240V AC
1 1/2 hp
Insulation Resistance
1,000 megaohm
Power Consumption
1.2 W
Status Indicator
No Indicator
Maximum Switching Voltage
28V DC, 600V AC
Response Time
20 msec
Input Voltage
12V DC
Sealing
Semi-Sealed
Mechanical Operating Durability
10,000,000
CAD Available
Yes
Type
Flange, Side Mount

Description

Enclosed Power Relay, Base Shape Octal, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 20 A, Electrical Connection Quick-Connect, Flat Pin Width Not Applicable, Number of Pins 8, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 20 A @ 277V, Contact Rating (DC) 20 A @ 28V, Horsepower @ 120V AC 3/4 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Side Flange, Body Depth 1.91 in, Body Height 1.53 in, Body Width 1.4 in, Contact Material Silver Alloy
