  13. Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

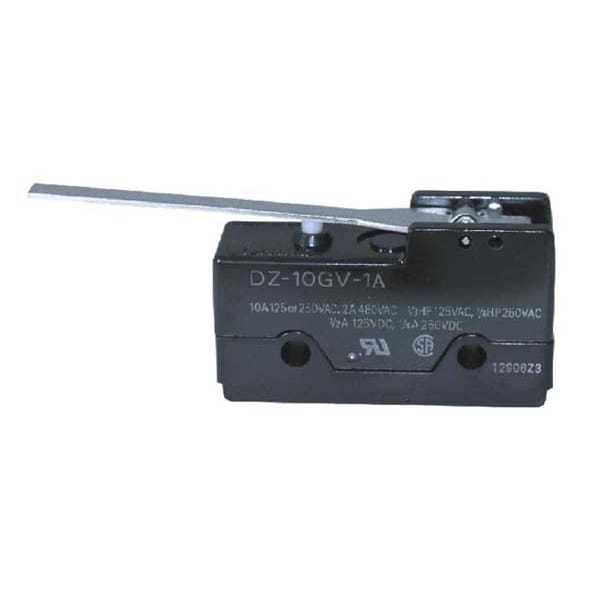

Omron Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GV-1A - main

Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GV-1A

  • Zoro # G0778416

product price: $20.35
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DZ-10GV-1A
Zoro #
G0778416
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.10"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Depth
0.69"
Actuator Length
2.50"
Overall Height
0.69 in
Body Width
3.01 in
Mounting Hole Diameter
3/16 in
Lever Actuator Length
2.5 in
Overall Depth
1.28 in
Overall Width
3.01 in
Body Depth
1.28 in
Body Height
0.69 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Type of Actuator
Hinge Lever
Voltage Rating
125/250VAC
Terminal Type
Solder
Contact Form
3NO/3NC
Differential Travel
0.067 in
Max. Pretravel
0.236 in
Standards
CSA, RU
Series
DZ
Electrical Connection - Snap Action Switch
Solder Lug
Operating Temp. Range
-13 Degrees to 176 Degrees F
Over Travel
0.016 in
Watertight - Snap Action Switch
No
Release Force
0.47 ozf
Operating Force
7.06 oz
Current Rating
10A
Housing Material
Phenolic
AC Contact Rating
2 A @ 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Center Mounting Hole Distance
1 in
Operating Force - Maximum
1.96 N
Actuator Style
Hinge Lever
Operating Temperature - Maximum
176 Degrees F
Pretravel
0.236 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
1.96 N
Differential Travel - Maximum
0.0669 in
Electrical Connection
Solder
Overtravel
0.016 in
Body Material
Phenolic

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
