  13. Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

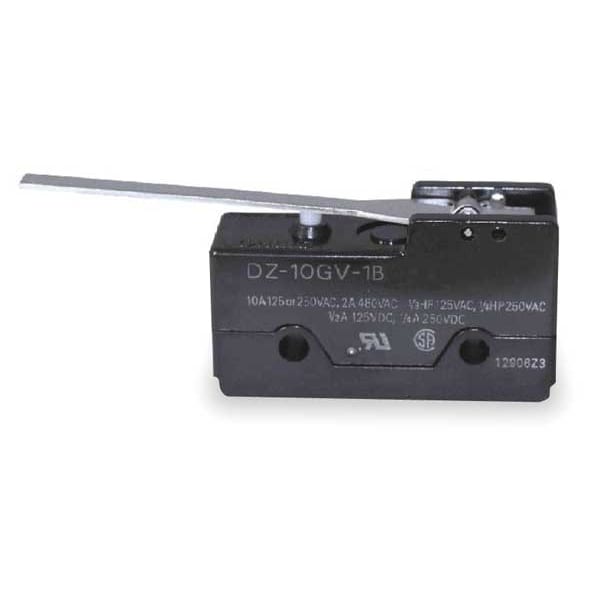

Omron Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GV-1B - main

Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GV-1B

  • Zoro # G0929047

product price: $21.75
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GV-1B
Zoro #
G0929047
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.94 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Actuator Length
1.94"
Length
1.94"
Height
1.10"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Body Height
0.69 in
Body Width
3.01 in
Overall Width
3.01 in
Body Depth
1.28 in
Mounting Hole Diameter
3/16 in
Overall Depth
1.28 in
Overall Height
0.69 in
Lever Actuator Length
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Voltage Rating
480VAC
Terminal Type
Screw
Over Travel
0.016 in
Housing Material
Phenolic
Series
DZ
Differential Travel
0.066 in
Type of Actuator
Hinge Lever
Release Force
0.47 ozf
Contact Form
3NO/3NC
Electrical Connection - Snap Action Switch
Screw
Watertight - Snap Action Switch
No
Operating Temp. Range
-25 Degrees to 80 Degrees C
Standards
CSA, RU
Current Rating
10A
Operating Force
7.1 oz
Max. Pretravel
0.236 in
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
2 A @ 480 V
Overtravel
0.016 in
Pretravel
0.236 in
Body Material
Phenolic
Operating Force - Maximum
1.96 N
Operating Force - Minimum
1.96 N
Actuator Style
Hinge Lever
Operating Temperature - Minimum
-13 Degrees F
Electrical Connection
Screw
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.0669 in
Operating Temperature - Maximum
176 Degrees F

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.94 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
