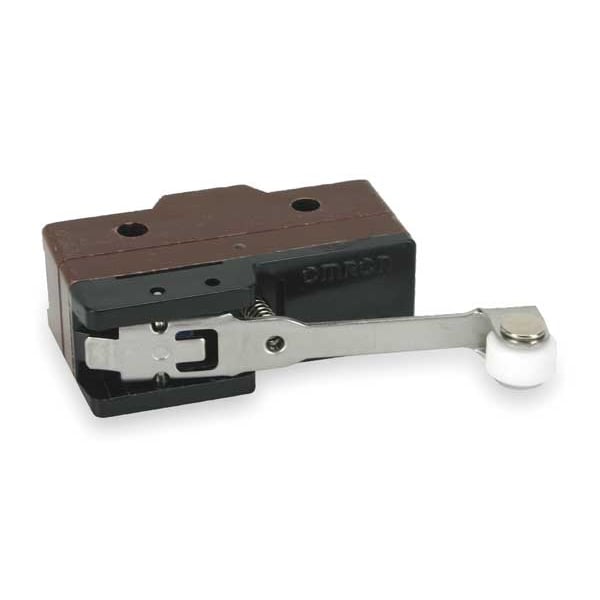

Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT

  • Mfr # X-10GW2-B

  • Zoro # G1778244

product price:  $19.69
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
X-10GW2-B
Zoro #
G1778244
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.16 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.91"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.16"
Length
1.94"
Mounting Dimension
1.00" Centers
Depth
0.69"
Body Height
0.69 in
Overall Depth
2.09 in
Overall Width
2.49 in
Roller Diameter
0.37 in
Roller Width
0.16 in
Overall Height
0.69 in
Lever Actuator Length
1.91 in
Body Width
2.49 in
Mounting Hole Diameter
3/16 in
Body Depth
2.09 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Standards
CE, CSA, RU
Electrical Connection - Snap Action Switch
Screw
Release Force
0.76 ozf
Max. Pretravel
0.359 in
Current Rating
10A
Watertight - Snap Action Switch
No
Voltage Rating
125VDC
Differential Travel
0.118 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Series
X
Operating Force
5.12 oz
Contact Form
1NO/1NC
Terminal Type
Screw
Housing Material
Phenolic
Type of Actuator
Hinge Roller Lever
Over Travel
0.16 in
Includes
Stainless-Steel Actuator
AC Contact Rating
2 A @250 V
DC Contact Rating
10 A @ 120 V
Body Material
Phenolic
Overtravel
0.157 in
Electrical Connection
Screw Terminal
Differential Travel - Maximum
0.1181 in
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Roller Lever
Operating Force - Minimum
1.42 N
Operating Temperature - Minimum
-13 Degrees F
Roller Material
Plastic
Center Mounting Hole Distance
1 in
Roller Position
Offset
Operating Force - Maximum
1.42 N
Pretravel
0.118 in
Roller Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Hinge Roller, Lever, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 1.16 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
