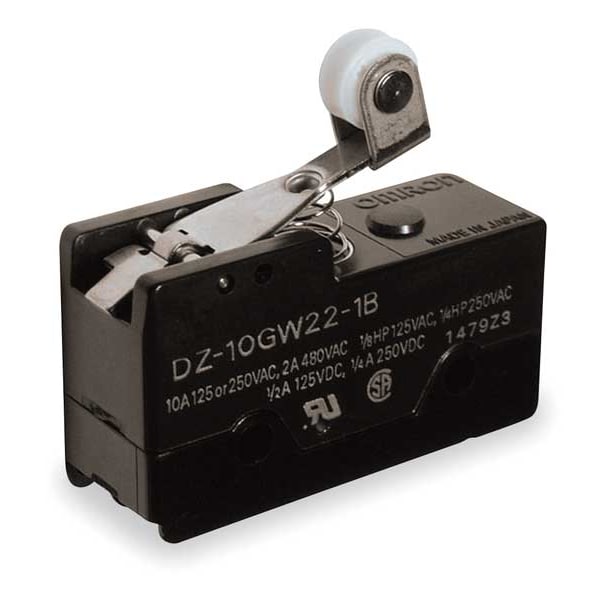

Omron Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GW22-1B6 - main

Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GW22-1B6

  • Zoro # G0952953

product price:  $35.49
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.03 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DZ-10GW22-1B6
Zoro #
G0952953
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.03"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Height
1.10"
Mounting Dimension
1.00" Centers
Length
1.94"
Roller Diameter
0.37 in
Body Width
1.94 in
Body Height
0.69 in
Mounting Hole Diameter
3/16 in
Roller Width
0.16 in
Overall Depth
0.69 in
Body Depth
0.69 in
Overall Width
1.94 in
Overall Height
0.69 in
Lever Actuator Length
1.03 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Contact Form
3NO/3NC
Current Rating
10A
Release Force
2.99 ozf
Type of Actuator
Hinge Roller Lever
Max. Pretravel
0.406 in
Terminal Type
Screw
Series
DZ
Electrical Connection - Snap Action Switch
Screw
Operating Temp. Range
-25 Degrees to 80 Degrees C
Differential Travel
0.094 in
Standards
CSA, RU
Over Travel
0.035 in
Operating Force
14.1 oz
Housing Material
Plastic
Voltage Rating
480VAC
Watertight - Snap Action Switch
No
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
2 A @ 480 V
Electrical Connection
Screw
Roller Adjustability
Fixed
Differential Travel - Maximum
0.0945 in
Actuator Style
Hinge Roller Lever
Body Material
Plastic
Operating Force - Maximum
3.92 N
Operating Force - Minimum
3.92 N
Roller Material
Plastic
Center Mounting Hole Distance
1 in
Roller Position
Inside Offset
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Overtravel
0.035 in
Pretravel
0.406 in

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
