  13. Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

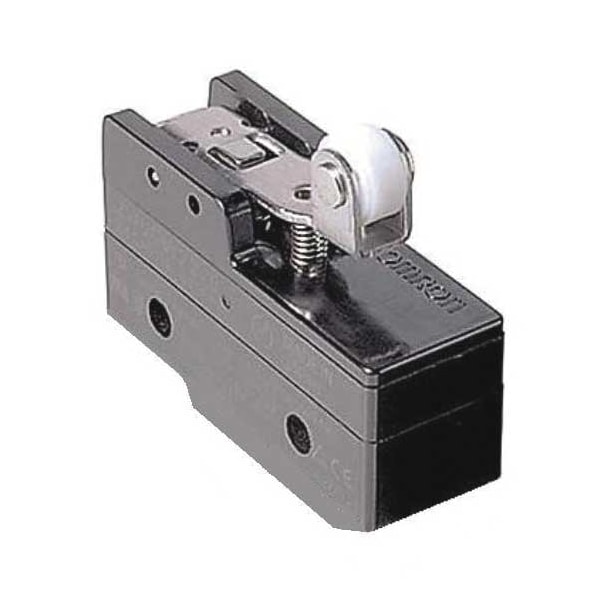

Omron Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating A-20GV22 - main

Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GV22

  • Zoro # G2741636

product price: $14.99
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.03 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A-20GV22
Zoro #
G2741636
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.05"
Length
1.94"
Actuator Length
1.03"
Mounting Dimension
1.00" Centers
Overall Height
0.69 in
Lever Actuator Length
1.03 in
Body Depth
1.67 in
Overall Depth
1.67 in
Body Width
1.94 in
Mounting Hole Diameter
3/16 in
Body Height
0.69 in
Overall Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Voltage Rating
125/250/480VAC
Differential Travel
0.047 in
Electrical Connection - Snap Action Switch
Solder Lug
Housing Material
Phenolic
Series
A
Standards
CSA, UL Listed
Watertight - Snap Action Switch
No
Terminal Type
Solder
Operating Force
5.65 oz
Operating Temp. Range
-13 Degrees to 176 Degrees F
Current Rating
20A
Over Travel
0.05 in
Contact Form
1NO/1NC
Max. Pretravel
0.248 in
Release Force
1.48 ozf
Type of Actuator
Short Hinge Roller Lever
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 480 V
Center Mounting Hole Distance
1 in
Body Material
Phenolic
Electrical Connection
Solder
Operating Temperature - Maximum
176 Degrees F
Differential Travel - Maximum
0.0472 in
Actuator Style
Hinge Roller Lever
Operating Force - Maximum
1.57 N
Roller Adjustability
Fixed
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
1.57 N
Pretravel
0.248 in
Overtravel
0.047 in

Description

Snap Action Switch, Hinge Roller, Lever, Short, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
