  13. Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

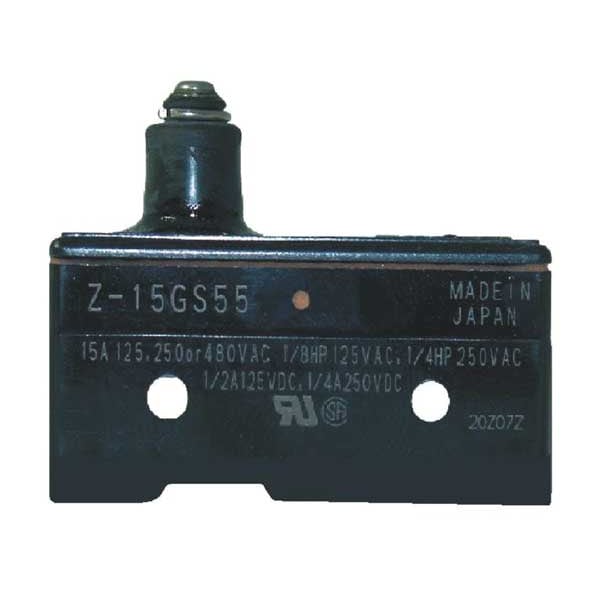

Omron Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GS55 - main

Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GS55

  • Zoro # G1077115

product price: $11.99
/ea

Key Features

Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.84 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z-15GS55
Zoro #
G1077115
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
0.84 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
0.84"
Actuator Length
0.54"
Mounting Dimension
1.00" Centers
Length
1.94"
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Height
0.69 in
Overall Width
1.94 in
Body Height
0.69 in
Body Width
1.94 in
Overall Depth
1.44 in
Body Depth
1.44 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Max. Pretravel
0.016 in
Type of Actuator
Slim Spring Plunger
Differential Travel
0.002 in
Watertight - Snap Action Switch
No
Operating Temp. Range
-13 Degrees to 176 Degrees F
Terminal Type
Solder
Standards
CSA, EN 61058-1, UL Listed
Series
Z
Current Rating
15a
Operating Force
8.83 to 12.36 oz
Contact Form
1NO/1NC
Voltage Rating
125/250VAC
Release Force
4.02 ozf
Electrical Connection - Snap Action Switch
Solder Lug
Over Travel
0.063 in
Housing Material
Phenolic
DC Contact Rating
15 A @ 14 V
AC Contact Rating
15 A @ 480 V
Roller Adjustability
Fixed
Operating Force - Maximum
3.43 N
Differential Travel - Maximum
0.002 in
Body Material
Phenolic
Overtravel
0.063 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
2.45 N
Center Mounting Hole Distance
1 in
Pretravel
0.016 in
Actuator Style
Plunger
Operating Temperature - Maximum
176 Degrees F
Electrical Connection
Solder

Description

Snap Action Switch, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.84 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
