  11. Switching Power Supply, 100/240V AC, 24V DC, 120 W, 5 A, Bracket

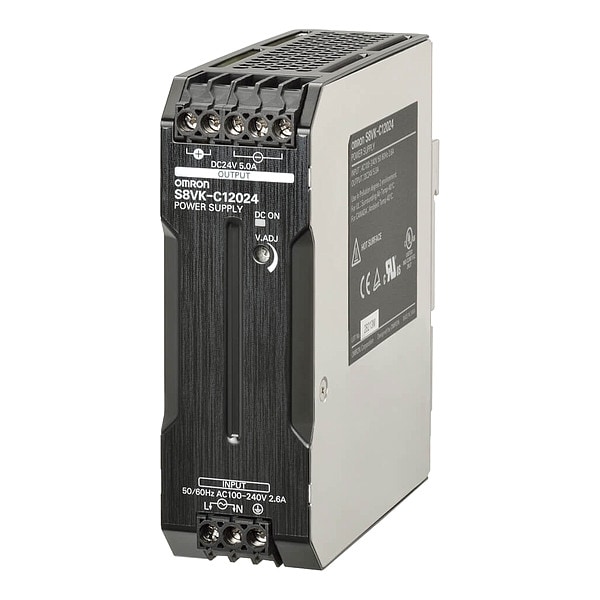

Omron Switching Power Supply, 100/240V AC, 24V DC, 120 W, 5 A, Bracket S8VK-C12024 - main

Switching Power Supply, 100/240V AC, 24V DC, 120 W, 5 A, Bracket

  • Mfr # S8VK-C12024

  • Zoro # G210080899

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
Bracket
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S8VK-C12024
Zoro #
G210080899
UPC #
4548583357914
Country of Origin
China

Dimensions

Overall Height
40 mm
Overall Width
129.7 mm
Overall Depth
122.2 mm
Depth
122.2 mm
Width
40 mm
Height
129.7 mm
Wire Size - Minimum
22 AWG
Wire Size - Maximum
10 AWG

Details

Item
Switching Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
Bracket
Phase
Single
Power Supply Style
Switching
Hz
50/60 Hz
Phase - Electrical
Single
Output Amps
5A
Style
Switching
Status Indicator
Green DC OK Signal
Power Rating
120W
Output Voltage
24V DC
Standards
CE, cRUus, CSA C22.2 No. 107.1/62368-1, EN55011 Class A, EN61204-3, EN62368-1, EN62477-1, UL Listed, UL508/62368-1
IP Rating
IP20
Operating Temp. Range
-25 to 60°C
Hold Up Time
27 msec, 128 msec
Series
S8VK-C
Input Frequency - Nominal
50/60 Hz
Manufacturer Warranty
3 yr
Mean Time Between Failures (MTBF)
490,000 hr
Wire Connection Type
Screw Terminals
Special Features
Overload Protection, Overvoltage Protection, Series Operation
Start Up Time - Maximum
800 msec
Operating Temperature - Minimum
-13 Degrees F
Current - Inrush
32 A
Maximum Efficiency @ 230V AC
88 %
Operating Temperature - Maximum
140 Degrees F

Description

Switching Power Supply, Input Voltage 100 to 240V AC, 90 to 350V DC, Output Voltage 24 V DC, Power Rating 120 W, Output Amps 5 A, Mounting Bracket, Switching, Height 129.7 mm, Width 40 mm, Depth 122.2 mm, Series S8VK-C, Hz 50 Hz/60 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator Green DC OK Signal, Operating Temp. Range -25 Degrees to 60 Degrees C, Standards CE, cRUus, CSA C22.2 No. 107.1/62368-1, EN55011 Class A, EN61204-3, EN62368-1, EN62477-1, UL Listed, UL508/62368-1
