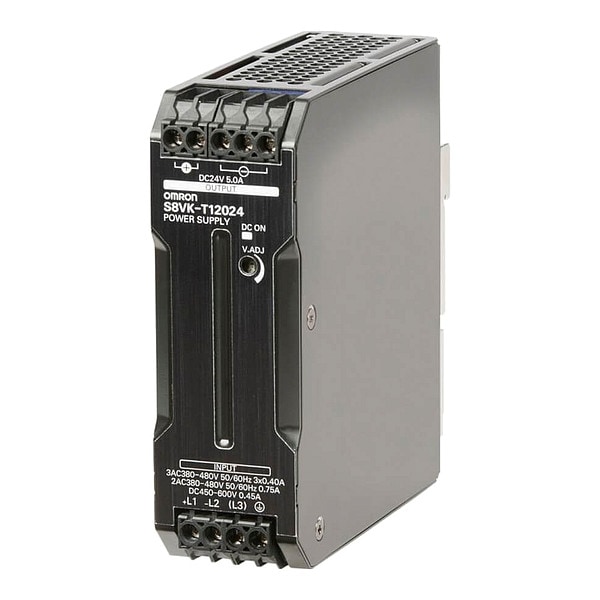

Switching Power Supply, 380/480V AC; 450/600V DC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # S8VK-T12024

  • Zoro # G110190582

product price:  $295.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
380/480V AC; 450/600V DC
Output Voltage - Nominal
24 V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S8VK-T12024
Zoro #
G110190582
UPC #
4548583357983
Country of Origin
China

Dimensions

Overall Height
4.92 in
Overall Width
1.58 in
Overall Depth
4.81 in
Height
125 mm
Width
40 mm
Depth
122.2 mm
Wire Size - Minimum
22 AWG
Wire Size - Maximum
10 AWG

Details

Item
Switching Power Supply
Input Voltage
380/480V AC; 450/600V DC
Output Voltage - Nominal
24 V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Phase
Three
Power Supply Style
Switching
Hz
50/60 Hz
Status Indicator
Green LED
Power Rating
120W
Output Noise
40 mV Maximum
Phase - Electrical
Three
IP Rating
IP20
Features
Power Boost Function at 120%, Three Year Warranty
Output Amps
5A
Style
Switching
Operating Temp. Range
-40 to 70°C
Series
S8VK-T
Hold Up Time
35 msec
Output Voltage
24V DC
Standards
EN/IEC 60529
Mean Time Between Failures (MTBF)
135,000 hr
Special Features
LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation
Current - Inrush
28 A
Operating Temperature - Maximum
158 Degrees F
Manufacturer Warranty
3 yr
Operating Temperature - Minimum
-40 Degrees F
Input Frequency - Nominal
50/60 Hz
Wire Connection Type
Rod Terminals
Start Up Time - Maximum
600 msec
Current - Peak
6 A
Input Frequency - Maximuim
63 Hz
Output Noise - Maximum
40 mV
Hold Up Time - Minimum
35 msec
Input Frequency - Minimum
47 Hz

Description

Switching Power Supply, Input Voltage 380 to 480V AC, 450 to 600V DC, Output Voltage 24 V DC, Power Rating 120 W, Output Amps 5 A, Mounting DIN Rail, Switching, Height 125 mm, Width 40 mm, Depth 122.2 mm, Series S8VK-T, Hz 50 Hz/60 Hz, Phase - Electrical Three, IP Rating IP20, Output Noise 40 mV Maximum, Status Indicator Green LED, Features Power Boost Function at 120 Percent, Three Year Warranty, Operating Temp. Range -40 Degrees to 70 Degrees C, Standards EN/IEC 60529
