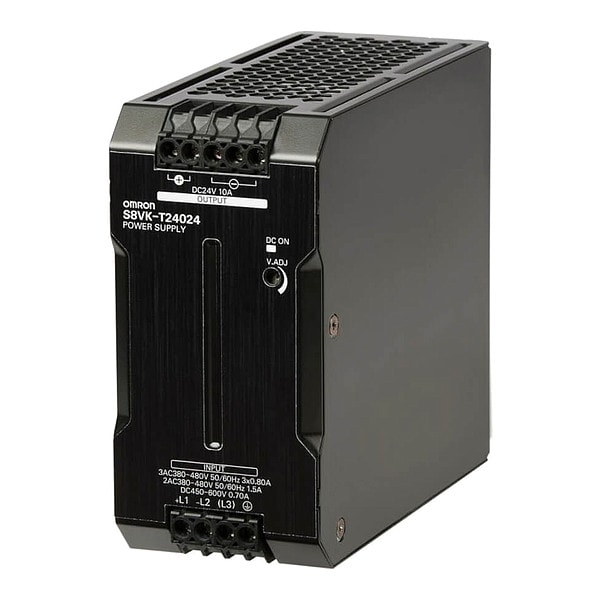

Switching Power Supply, 380/480V AC; 450/600V DC, 24V DC, 240 W, 10 A, DIN Rail
- Mfr # S8VK-T24024
- Zoro # G910080922
product price:Â
$
573.99
/ea
Free Shipping & Returns
Key Features
Input Voltage
380/480V AC; 450/600V DC
Output Voltage - Nominal
24 V DC
Output Power - Rated
240 W
Current - Output
10 A
Mounting
DIN Rail
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S8VK-T24024
- Zoro #
- G910080922
- UPC #
- 4548583357990
- Country of Origin
- China
Dimensions
- Overall Height
- 4.92 in
- Overall Width
- 2.36 in
- Overall Depth
- 5.91 in
- Height
- 125 mm
- Depth
- 150 mm
- Width
- 60 mm
- Wire Size - Maximum
- 10 AWG
- Wire Size - Minimum
- 22 AWG
Description
Switching Power Supply, Input Voltage 380 to 480V AC, 450 to 600V DC, Output Voltage 24 V DC, Power Rating 240 W, Output Amps 10 A, Mounting DIN Rail, Switching, Height 125 mm, Width 60 mm, Depth 150 mm, Series S8VK-T, Hz 50 Hz/60 Hz, Phase - Electrical Three, IP Rating IP20, Output Noise 50 mV Maximum, Status Indicator Green LED, Features Power Boost Function at 120 Percent, Three Year Warranty, Operating Temp. Range -40 Degrees to 70 Degrees C, Standards EN/IEC 60529
