  7. Top Flange, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect

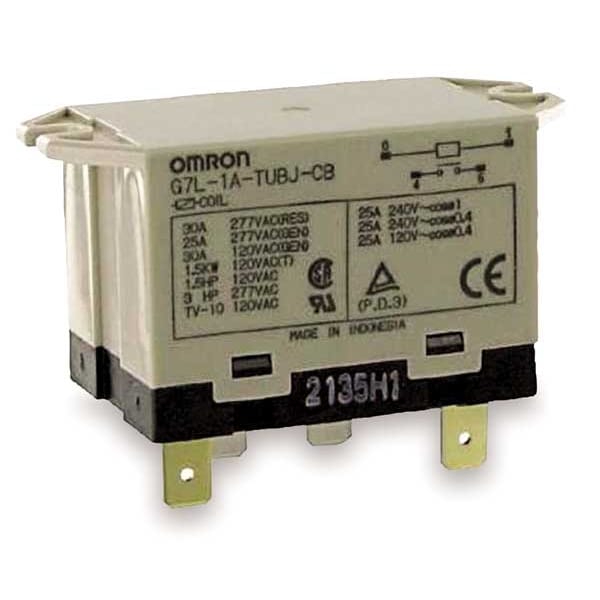

Omron Top Flange, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect G7L-1A-TUBJ-CB-AC24 - main

CAD Drawings

Download CAD Files

Shop OMRON

Top Flange, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect

  • Mfr # G7L-1A-TUBJ-CB-AC24

  • Zoro # G3011181

CAD Available
product price:  $14.95
/ea

Key Features

CAD Drawing
Mounting Style
Top Flange
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
4
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G7L-1A-TUBJ-CB-AC24
Zoro #
G3011181
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
1.85 in
Dimensions
1.99"H, 1.40"W, 1.32"D
Body Height
2.7 in
Body Width
1.4 in
Overall Depth
1.85 in
Body Depth
1.32 in
Flat Pin Width
0.25 in
Mounting Hole Diameter
0.18 in

Details

Item
Enclosed Power Relay
Mounting Style
Top Flange
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
4
Coil Voltage
24V AC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
30 A @ 240V
Contact Amp Rating (Inductive)
25A @ 220VAC
Standards
CSA Certified, TUV Certified, UL Listed, VDE/IEC950
Power Consumption - Relay
2.5 VA
Contact Material
Silver Tin Indium
HP @ 120V
1 1/2
Contact Amp Rating (Resistive)
30A @ 220VAC
HP @ 240V
3
Hz
50/60
Number of Poles
1
Coil Rating
2.5VA, 1.9W
Hz - Electrical
50/60 Hz
Features
Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage
Input Voltage
24V AC
Horsepower @ 120V AC
1 1/2 hp
Push-To-Test Method
Test Button
Motor Rated
Yes
Sealing
Semi-Sealed
Minimum Switching Current
100 mA
Electrical Operating Durability
100,000
Operating Current
30 A
Frequency
60 Hz
Maximum Switching Voltage
250V AC
Power Consumption
1.7 VA, 2.5 VA
Dielectric Strength
2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts
Mechanical Operating Durability
1,000,000
Response Time
30 msec
For Use With
Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Lighting Controller, Microwaves, Motors, Office Equipment, Packers, Power Controllers
Horsepower @ 240V AC
3 hp
Series
G7L Series
Insulation Resistance
1,000 megaohm
Resistance Properties
Flame-Resistant
Status Indicator
No Indicator
CAD Available
Yes
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 4, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 240V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style Top Flange, Push-To-Test Method Test Button, Body Depth 1.32 in, Body Height 2.7 in, Body Width 1.4 in, Contact Material Silver Tin Indium
