Osg

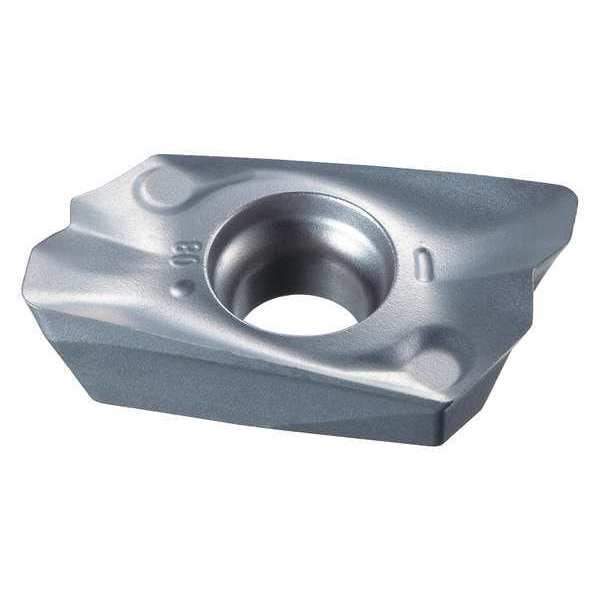

Carbide Milling Insert, ZDKT, Uncoated

product price: $20.15
/ea
Sold in multiples of 10 for $201.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Parallelogram
  • Steel (P) Compatibility No
  • Hardened (H) Compatibility No
  • Cast Iron (K) Compatibility No
  • Super Alloy (S) Compatibility No
See all product information

Product Information

Dimensions

Nose Radius 0.81mm
Mounting Hole Dia. 4.50mm
Insert Size 150508
Depth of Cut 1.60mm
Corner Radius 0.80mm
Width 9.30mm
Cutting Edge Length 15.00mm
Through Hole Inside Dia. 4.50mm

Details

Insert Shape Parallelogram
Steel (P) Compatibility No
Hardened (H) Compatibility No
Cast Iron (K) Compatibility No
Super Alloy (S) Compatibility No
Insert Thickness 5.56mm
Stainless (M) Compatibility No
Cutting Direction Right Hand
Workpiece Compatibility Nonferrous (N)
Non Ferrous (N) Compatibility Yes
Insert Application Medium
Grade CK010
For Use With Indexable Ballnose End Mills
Rake 15 Degrees
Insert Material Carbide
Item Parallelogram Milling Insert
Coating Uncoated
No. of Edges 2
Chip-Breaker Yes
Insert Style ZDKT
Mounting Style Screw
ISO Number ZDKT150508FR-NM
Series 78PSE
Number of Cutting Edges 2
Finish - Machining Bright (Uncoated)
Primary Material Application ISO Code N
Hole Type 40 Degrees to 60 Degrees Countersink Hole
Manufacturer Grade CK010
Shape Parallelogram
For Toolholder PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4
Chip-Breaker Code NM
Thickness 5.56mm
Clearance Angle 15 Degrees
Material - Machining Carbide
Measurement System Metric
Insert Holding Type Screw
Features Composed of a Non-Coated Carbide Material with Anti-Chippingd Wear Resistant Properties
Cutting Application Medium
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium

Description

Parallelogram Milling Insert, 15 Degrees , NM, 15 Degrees
