29PC 135 Degree Heavy-Duty Cobalt Jobber Lngth Drill Set Chicago-Latrobe 550 Straw HSS-CO 8% 1/16-1/2x1/64
Mfr # 57850
Zoro # G2442151
Key Features
Specifications
Product Information
- MFR #
- 57850
- Zoro #
- G2442151
- UPC #
- 662355578506
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Drill Bit Dimension Type
- Fractional Inch
- Shank Dia.
- 1/6 in
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Depth x Dia. Ratio
- 4xD
- Size Range
- 1/16"-1/2"
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Length Class
- Jobber-Length
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

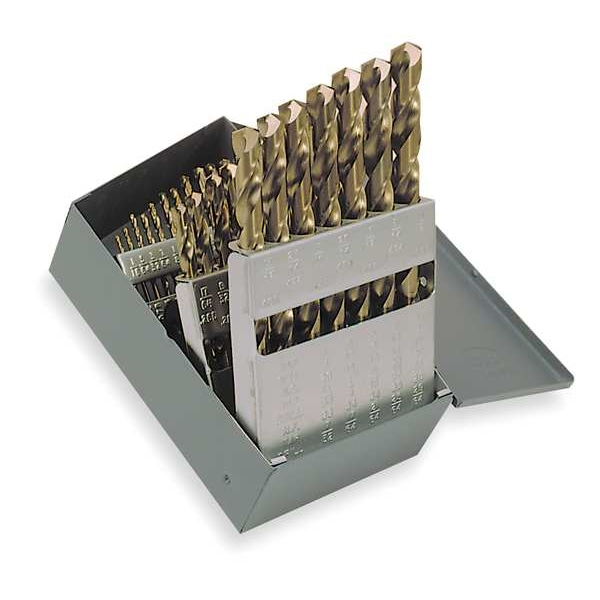

The CHICAGO-LATROBE 57850 is a jobber length drill bit set consisting of 29 cobalt drill bits sized from 1/16" to 1/2" in fractional inch measurements. It has split point tips with a 135-degree point angle and a right-hand spiral direction. The set is intended for drilling applications in the listed materials: aluminum, cast iron, hardened steel, stainless steel, steel, and titanium (as applicable to the workpiece and cutting conditions). Each drill bit in the set has a straight shank and has overall lengths ranging from 1 7/8 inches up to 6 inches. The set is supplied in a metal drill index for organization and storage.
Key Features:
- Drill bit sizes range incrementally from 1/16" to 1/2" by 64ths, totaling 29 pieces.
- Is made from cobalt for use in drilling metal workpieces.
- Jobber length style with a depth-to-diameter ratio of 4xD.
- Straight shank type; diameter: 1/6 inch.
- Split point design; point angle: 135°.
- Right-hand spiral and cutting direction.
- Includes metal drill index case for bit organization.
- Complies with NAS 907 Type J standard.
