  6. Cor Rad End Mill, 1", Carb, 0.1200" rad

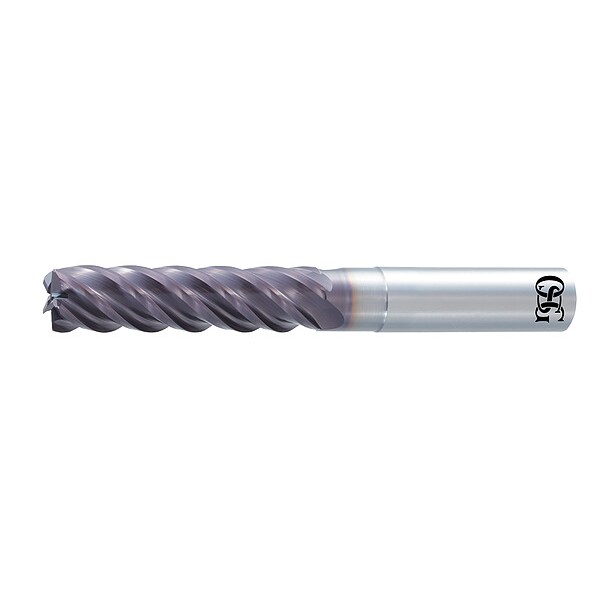

Osg Cor Rad End Mill, 1", Carb, 0.1200" rad 21081611 - main

Cor Rad End Mill, 1", Carb, 0.1200" rad

  • Mfr # 21081611

  • Zoro # G0509723

product price:  $593.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Fractional Inch
Milling Diameter
1"
End Mill Material
Carbide
Number of Flutes
5
Single End/Double End
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
21081611
Zoro #
G0509723
UPC #
-
Country of Origin
United States

Dimensions

Dimension Type
Fractional Inch
Corner Radius
0.12 in
Milling Diameter
1"
Shank Dia.
1 in
Neck Dia.
0.98 in
Neck Length
3 in
Length of Cut
2 in
Overall Length
5 1/2 in
Milling Dia.
1 in

Details

End Mill Material
Carbide
Number of Flutes
5
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Finish
Uncoated
Grade
Micro Grain
Material Grade - Machining
C2 Micrograin
Shank Type - Machining
Straight
Workpiece Compatibility
Stainless (M), Super Alloy (S)
Finish - Machining
EXO
Spiral Direction
Right Hand
Cutting Direction
Right Hand
Measurement System
Inch
Helix Angle
Variable
Material - Machining
Carbide
Drilling Tool Configuration
Individual
End Mill Style
Corner-Radius
Item
Corner Radius End Mill
Cutting Direction - Machining
Right Hand
End Mill Application
Finishing
List Number
2108
Primary Material Application ISO Code
S
Primary Material Application
Titanium
Secondary Material Application ISO Code
M
Min. Helix Angle
41 Degrees
Max. Helix Angle
43 Degrees
Flute Type
Spiral
Flute Spacing
Variable
Series
EXOCARB AERO UVX-Ti
Secondary Material Application
Stainless Steel

Description

Corner Radius End Mill, 1 in Milling Dia., Carbide, EXO, Straight, Inch, 0.12 in, 2 in, 5 1/2 in
