Shop All Indexable Face Mills
Osg

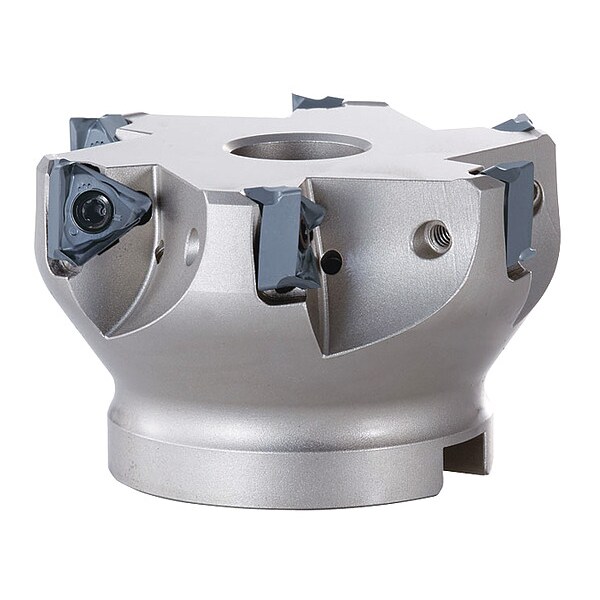

Indexable Face Mill

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Indexable Face Mill
  • Series: CV50
  • Depth of Cut: 0.1200"
  • Overall Length: 40.00mm
  • Coolant Fed: Coolant Through
  • Features: 90 Degree Indexable Shoulder Cutter For Face Milling
  • Cutting Direction: Right Hand
  • Standards: ANSI B5.50
See full product details
$429.79
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Osg #7803102 Specifications

  • Item: Indexable Face Mill
  • Series: CV50
  • Depth of Cut: 0.1200"
  • Overall Length: 40.00mm
  • Coolant Fed: Coolant Through
  • Features: 90 Degree Indexable Shoulder Cutter For Face Milling
  • Cutting Direction: Right Hand
  • Standards: ANSI B5.50
  • Insert Size: 12.00mm
  • Hub Outside Dia.: 63.00mm
  • Side Cutting Edge Angle: 90 Degrees
  • Cutting Application: Face Milling
  • Compatible Hardware: 7808129, 7808151, 7808208
  • Insert Style: TNKU
  • Insert Holding Type: Clamping Screw
  • Max. Cutting Dia.: 63.00mm
  • ANSI Code: PSTW12R080M27-5
  • Arbor Dia.: 22.00mm
  • Number of Inserts: 6
  • Insert Shape: Triangle
  • Number of Coolant Holes: 3
  • Max. Speed: 590 RPM
  • Shank Type - Machining: Straight
  • Connection Size: CV50
  • Country of Origin (subject to change): Japan

Description

Indexable Face Mill, Max. Cutting Dia. 63.00mm, Arbor Dia. 22.00mm, Depth of Cut 0.1200 in, ANSI Code PSTW12R080M27-5, Compatible Hardware 7808129, 7808151, 7808208, Coolant Fed Coolant Through, Cutting Application Face Milling
