  9. Milling Insert, Octagon, GR, XC1015

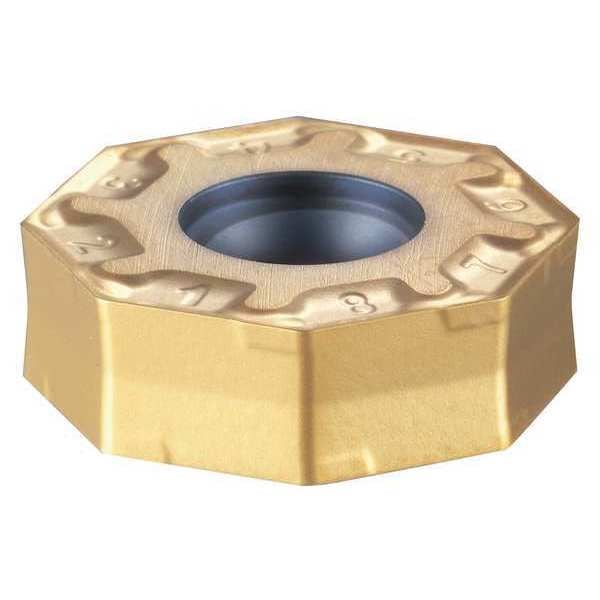

Osg Milling Insert, Octagon, GR, XC1015 7812086 - main

Milling Insert, Octagon, GR, XC1015

  • Mfr # 7812086

  • Zoro # G7766711

product price: $25.59
/ea
Sold in multiples of 10 for $255.90

Key Features

Nose Radius
0.8mm
Non Ferrous (N) Compatibility
No
For Use With
Indexable Ballnose End Mills
Lead Angle
7 Degrees
Insert Material
Carbide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7812086
Zoro #
G7766711
UPC #
-
Country of Origin
Austria

Dimensions

Nose Radius
0.8mm
Insert Thickness
5.66mm
Insert Size
060508
Width
17.10mm
Thickness
5.66 mm
Corner Radius
0.80mm
Cutting Edge Length
6.00mm

Details

Non Ferrous (N) Compatibility
No
For Use With
Indexable Ballnose End Mills
Item
Octagon Milling Insert
Lead Angle
7 Degrees
Insert Material
Carbide
ANSI Number
OZKU060508SR-GR
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Cutting Direction
Right Hand
Insert Shape
Octagon
ISO Number
OZKU060508SR-GR
Grade
XC1015
Stainless (M) Compatibility
No
Hardened (H) Compatibility
No
Insert Application
Finishing
Chip-Breaker
Yes
No. of Edges
16
Coating
TiCN - Al2O3
Steel (P) Compatibility
No
Mounting Style
Screw
Insert Style
OZKU
Inscribed Circle
17.10mm
Workpiece Compatibility
Cast Iron (K)
Series
78PAO
Primary Material Application ISO Code
K
Features
Composed of a Tough High-Strength Carbide Material with an Anti-Chipping and Wear Resistant Coating
Manufacturer Grade
XC1015
Included Angle
135 Degrees
Primary Material Application
Cast Iron
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Clearance Angle
3 Degrees
Coating Process
CVD
Cutting Application
Finishing
Insert Holding Type
Screw
Shape
Octagon
Finish - Machining
TiCN+Al2O3
Chip-Breaker Code
GR
For Toolholder
PAO06R050M22-5, PAO06R063M22-7, PAO06R080M25.4-8, PAO06R100M31.7-10, PAO06R100M31.7W-14, PAO06R125M38.1-12, PAO06R125M38.1W-17, PAO06R160M50.8W-20, PAO06R200M47.6W-25
Material - Machining
Carbide
Number of Cutting Edges
16
Measurement System
Metric

Description

Octagon Milling Insert, Inscribed Circle 17.10mm
