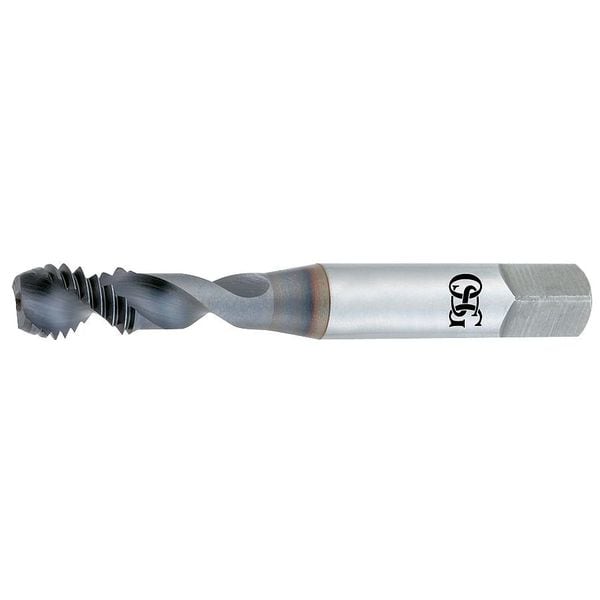

Spiral Flute Tap, Modified Bottoming, 3

  • Mfr # 1305800708

  • Zoro # G9278482

product price:
$
38.19
/ea

Key Features

Overall Length
2 23/32 in
Tap Style
Spiral Flute
Tap Size
5/16"
Shank Dia.
0.318"
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1305800708
Zoro #
G9278482
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
2 23/32 in
Tap Size
5/16"
Shank Dia.
0.318"
Tap Dimension Type
Inch
Thread Length
7/16 in
Tap Thread Size
5/16"-18
Shank Length
1 19/32 in
65% Thread Drill Size
17/64 in
55% Thread Drill Size
I
Thread Size
5/16"-18
Drill Bit Size
0.2548 in, 0.2584 in, 0.2620 in, 0.2656 in, 0.2692 in
75% Thread Drill Size
F
Square Size
0.2380 in
Size
5/16
Pitch Diameter Limit
Not Rated
Square Length
0.375 in
Square Width
0.238 in
Shank Diameter
5/16 in
Wire Rope Length
2 23/32 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Measurement System
Fractional Inch
Tap Grouping
Tap
Tap Thread Type
UNC
Thread Direction
Right Hand
Tap Finish
TiCN
Series
13058
Cutting Direction - Machining
Right Hand
Thread Standard
UNC
Extended Neck
Yes
Class of Fit
2B
Helix Angle
45 Degrees
Primary Material Application ISO Code
N
Features
Eliminates Friction To Enable High Speed Tapping, For Blind Hole Applications, Increased Wear Resistance, Tin Improves Wear Resistance For Extended Tap Life
Coolant Fed
Non-Coolant Through
Primary Material Application
Aluminum
Threads per Inch
18
Shank Type - Machining
Straight
Material Grade - Machining
13058
List Number
13058
Number of Pieces
1
Tap Application
Blind Hole
Shank Type
Square

Description

Spiral Flute Tap, Thread Size 5/16 In.-18, UNC, Overall Length 2 23/32 in, Vanadium High Speed Steel, V, Thread Length 7/16 in, 75 Percent Thread Drill Size F, Thread Limit Not Applicable, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 2
