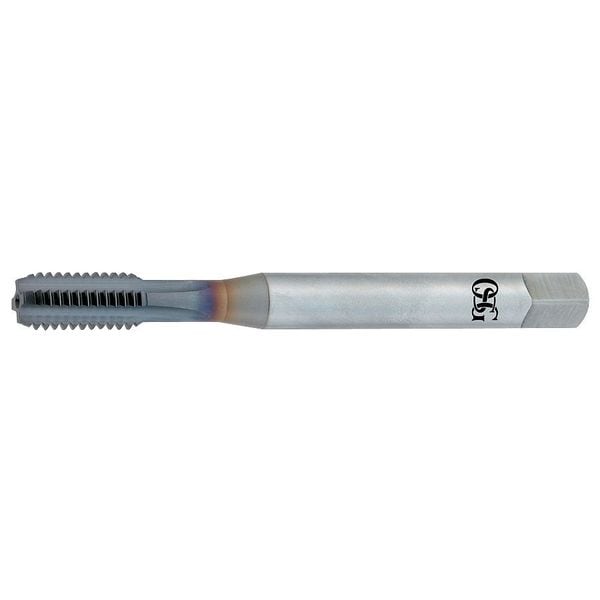

Straight Flute Hand Tap, 3/4"-10, Bottoming, 5 Flutes, UNC
Mfr # 1005302708
Zoro # G9294363
product price:Â
$
159.99
/ea
Free Shipping & Returns
Key Features
Tap Thread Size
3/4"-10
Tap Chamfer
Bottoming
Number of Flutes
5
Tap Thread Type
UNC
Tap Style
Straight Flute (Hand)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1005302708
- Zoro #
- G9294363
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Tap Thread Size
- 3/4"-10
- Tap Size
- 3/4"
- Overall Length
- 5"
- Thread Length
- 2"
- Shank Dia.
- 0.590"
- Pitch Diameter Limit
- H5
- Tap Dimension Type
- Inch
- Shank Length
- 2 15/32 in
- Square Size
- 0.4420 in
- 55% Thread Drill Size
- 17.20 mm
- Thread Size
- 3/4"-10
- 65% Thread Drill Size
- 16.90 mm
- 75% Thread Drill Size
- 16.50 mm
- Tap Length Standard
- DIN
- Size
- 3/4"
- Shank Diameter
- 0.59 in
- Square Width
- 0.44 in
- Square Length
- 0.69 in
- Neck Length
- 2.43 in
- Wire Rope Length
- 4.92 in
- Length
- 4.92 in
Description
Straight Flute Tap, Thread Size 3/4 In.-10, UNC, Bottoming, Overall Length 4.92 in, Powdered Metal, V, Right Hand, Thread Length 1.2 in, 75 Percent Thread Drill Size 16.50 mm, Thread Limit H5, Class of Fit 2B-3B
