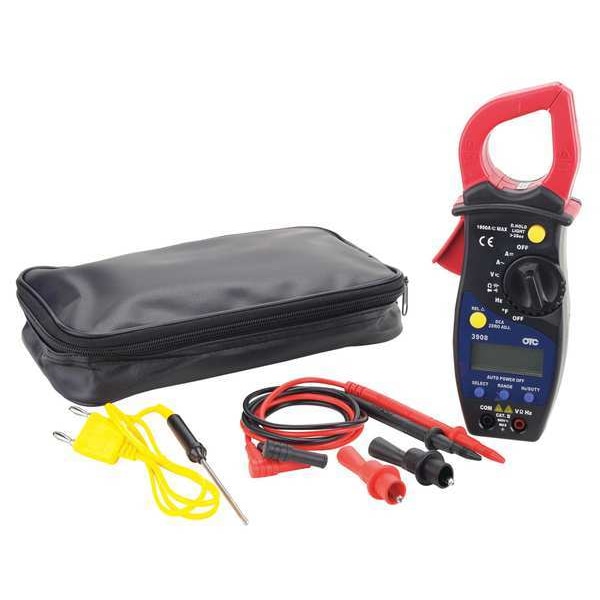

  5. Clamp Meter Kit, Backlit LCD, 1,000 A, 1.3 in (33 mm) Jaw Capacity, CAT III 600V Safety Rating
Otc Clamp Meter Kit, Backlit LCD, 1,000 A, 1.3 in (33 mm) Jaw Capacity, CAT III 600V Safety Rating 3908 - main
Shop OTC

Clamp Meter Kit, Backlit LCD, 1,000 A, 1.3 in (33 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # 3908

  • Zoro # G2016257

product price:  $196.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3908
Zoro #
G2016257
UPC #
731413549380
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Max. Conductor Size
1.26 in (32.0mm)
Maximum Conductor Size
1.26 in (32.0mm)
Battery Size
9V

Details

Item
Clamp Meter Kit
Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
Jaw Capacity
1.3 in (33 mm)
Temp. Range
32 Degrees to 104 Degrees F
Safety Rating
CAT III 600V
Display
Backlit LCD
Jaw Opening
1.3 in
Max. DC Amps
1,000
Max. AC Volts
600 V
Inrush
No
AC Response
TRMS
Counts
4,000
Auto Ranging
Yes
Bar Graph
No
Standards
IEC 1010, Over Voltage Category III, Pollution Degree 2
Special Features
Automatic Negative Polarity Indication, Automatic Zero Adjustment, Low Battery Symbol, Over Range Indication, Relative Measurement Symbol
Frequency Counter
1 Hz to 10 kHz
Calibration Certificate
Not Included
Audible Continuity
No
Battery Type
9V
Auto Power Off
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Includes
Battery, Soft Carrying Case, Temperature Probe, Test Leads
Midscale Resistance
400 ohm
Thermometer Type
Type K Thermocouple
Memory
Data Hold
Operating Temp.
32 Degrees to 104 Degrees F
Capacitance
4, 100
Non-Contact Voltage Detector
No
Diode Test
Yes
Data Hold
Yes
Peak Hold
No
Maximum Resistance Measurement
40 megaohm
Bar Graph Included
No
Inrush Current Measurable
No
Batteries Included
Yes
Maximum AC Voltage Measurement
600 V
Display Type
Backlit LCD
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)
AC Response Calculation
TRMS
Maximum DC Voltage Measurement
600 V
Maximum DC Current Measurement
1,000 A
Maximum Capacitance Measurement
4 uF
Jaw Style
Clamp-Jaw
Calibration Certificate Included
No
Maximum AC Current Measurement
1,000 A

Description

Clamp Meter Kit, Audible Continuity No, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature, Jaw Opening 1.3 in, Jaw Style Clamp, Calibration Certificate Included No
