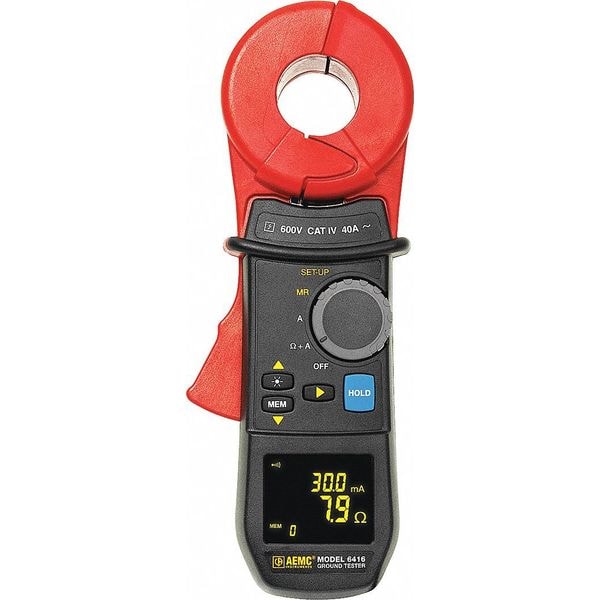

Aemc Instruments Clamp On Earth Tester, OLED Display 6416 - main

Clamp On Earth Tester, OLED Display

  • Mfr # 6416

  • Zoro # G5932363

product price:  $1,805.99
/ea
Free Shipping & Returns

Key Features

Ground Resistance Range
0.025 to 1500 ohm
Resolution
0.001 ohm
Operating Frequency
50, 60 128, 2083 Hz
Jaw Capacity
1.3 in (35mm)
Battery Type
(2) 1.5V AA
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6416
Zoro #
G5932363
UPC #
685338130485
Country of Origin
France

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
AA

Details

Item
Clamp On Earth Resistance Tester
Ground Resistance Range
0.025 to 1500 ohm
Resolution
0.001 ohm
Operating Frequency
50, 60 128, 2083 Hz
Jaw Capacity
1.3 in (35mm)
Battery Type
(2) 1.5V AA
Counts
10,000
Current Measurement Range
0.2mA to 40A
Display
OLED
Special Features
Stores 300 Measurements
Safety Rating
CAT IV 600V, ETL
Resistance Accuracy
+/-1.5%
Includes
Hard Carrying Case
Auto Power Off
Yes
Communication Protocol
Bluetooth
Number of Records Stored
300
Leakage Current Range
0.2 mA to 40 A
Bluetooth Compatible
Yes
Maximum Earth Voltage
75 V
Features
300 Storage Locations, Automatic Calibration of Jaw Opening Distance at Start-Up, Automatic Pre-Hold Mode When the Clamp is Opened, Buzzer and Automatic Power-Off, Real-Time Clock for Time/Date-Stamping of Measurements
Data Output Type
No Output
Tester Type
Clamp-On Ground Resistance Tester
Power Source
Battery
Data Logger
Yes
CAT Safety Rating
CAT IV 600V
Display Screen Type
OLED
Leakage Current Measurement - Minimum
0.2 mA
Leakage Current Measurement - Maximum
40 A
Calibration Certificate Included
No Certification Included
Ground Testing Functions
Stakeless
Resistance Testing Functions
AC Current, Continuity, Ground Loop Resistance, Inductance
IP Rating
IP40
Includes Batteries
Batteries Included

Description

Clamp On Earth Resistance Tester, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Data Logger Yes, IP Rating IP40, Jaw Capacity 1.3 in (35mm), Leakage Current Range 0.2 mA to 40 A, Maximum Earth Voltage 75 V, Number of Records Stored 300, Resistance Accuracy +/-1.5 Percent, Test Current Not Applicable, Test Voltage Not Applicable, Communication Protocol Bluetooth, Battery Size AA, Display Screen Type OLED
