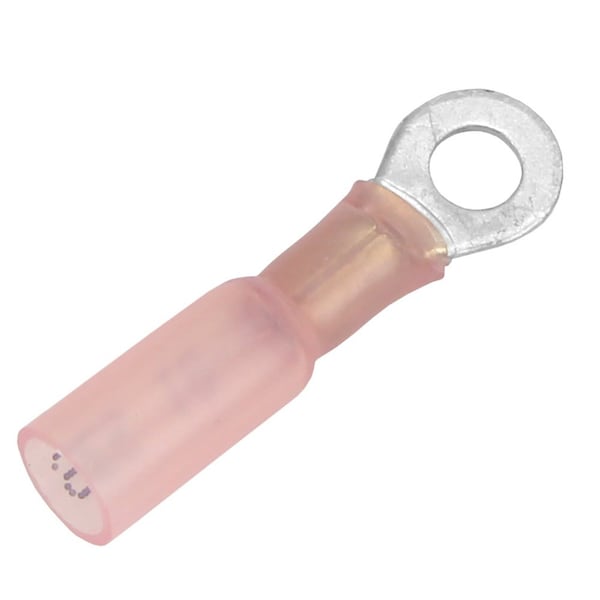

Pacer 22-18 AWG Heat Shrink Ring Terminal - No 10 Stud Size - 100 Pack
Mfr # TE18-10R-100
Zoro # G111845962
product price:
$
45.89
/ea
Key Features
Standards
UL & CSA Listed
Minimum Wire Size
22 AWG
Terminal Shape
Standard Ring Tongue
Insulation Coverage
Partial Coverage
Insulation Color
Red
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TE18-10R-100
- Zoro #
- G111845962
- UPC #
- 840248206365
- Country of Origin
- United States
Dimensions
- Minimum Wire Size
- 22 AWG
- Maximum Wire Size
- 18 AWG
- Stud Size
- #10
Details
- Item
- Ring Terminal
- Standards
- UL & CSA Listed
- Terminal Shape
- Standard Ring Tongue
- Insulation Coverage
- Partial Coverage
- Insulation Color
- Red
- Contact Material
- Copper
- Minimum Operating Temperature
- -55 Degrees C
- Maximum Voltage
- 600 V
- Insulation Type
- Heat Shrink
- Maximum Operating Temperature
- 125 Degrees C
Description
22-18 AWG Heat Shrink Ring Terminal - #10 Stud Size - 100 Pack Ring terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use. Features:Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections:Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications:Color: Red Wire AWG: 22-18 AWG Stud Size: #10 Terminal Pad Width inch: 0.32in Package Size: One-hundred included
