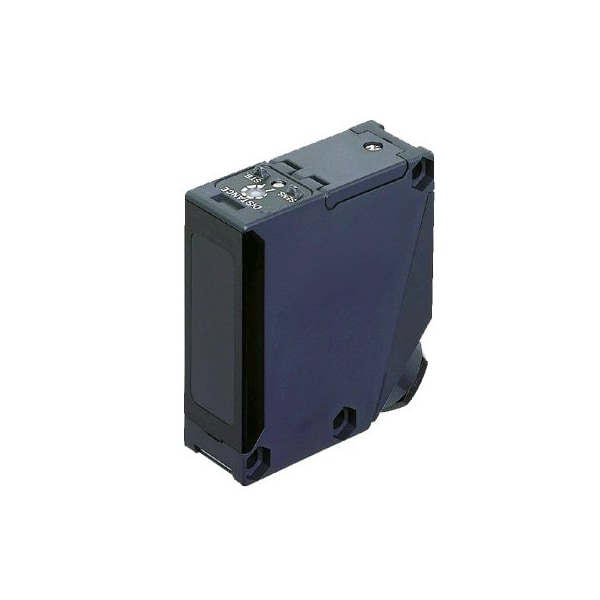

Photoelectric Sensor

Adjustable range reflective photoelectric sensor from Panasonic EQ-500 series designed for long-distance stable object detection in industrial automation systems. It provides reliable sensing independent of object color or material with built-in interference prevention and high durability. Specifications: -Type: Photoelectric Sensor (Adjustable Range Reflective) -Series: EQ-501 -Sensing Method: Reflective (Distance Adjustable) -Adjustable Range: 0.2 to 2.5 m -Sensing Range: 0.1 to 2.5 m (max setting) -Output Type: Relay Contact 1a -Supply Voltage: 24-240 V AC ±10% / 12-240 V DC ±10% -Power Consumption: AC ≤ 4 VA / DC ≤ 3 W -Output Load: 3 A at 250 V AC / 3 A at 30 V DC (resistive) -Response Time: ≤ 20 ms -Operation Mode: Detection-ON / Detection-OFF selectable -Light Source: Infrared LED (855 nm, modulated) -Protection Rating: IP67 -Indicator: Orange LED (Output ON), Green LED (Stable state) -Distance Adjustment: 2-turn mechanical adjuster -Interference Prevention: Built-in -Ambient Temperature: -25 deg C to +55 deg C -Connection Type: Screw terminal -Material: ABS housing, polycarbonate cover
