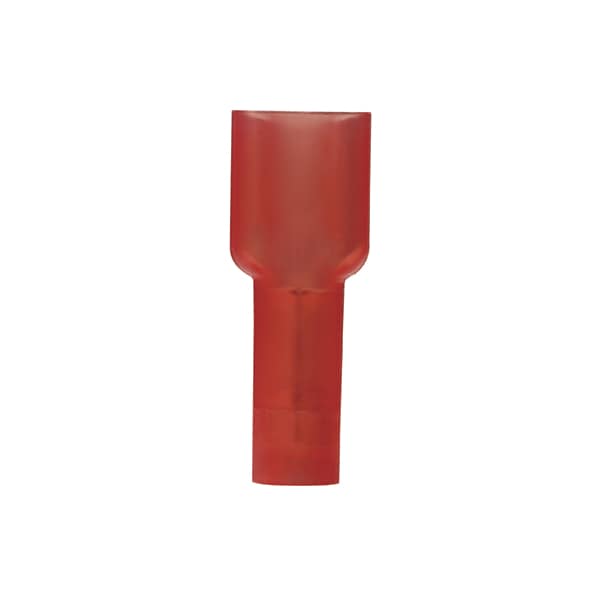

Female Disconnect, double crimp, nylon fully, DNG18-250FB-M, PK 1000

  • Mfr # DNG18-250FB-M
  • Zoro # G2854488

product price:
$
360.99
/pk of 1000, $0.36/ea
Free Shipping & Returns

Key Features

For Use With
CT-1015
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.93 in
Width
0.35 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNG18-250FB-M
Zoro #
G2854488
UPC #
7498351434
Country of Origin
Mexico
For Use With
CT-1015
Color Code
Red
Insulation Type
Fully Insulated
Finish
Tinned
Barrel Type
Funnel
Flammability Rating
UL94-HB
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (kV)
0.6
Disconnect Type
Female Disconnect-Supra Grip
Base Material
Brass
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Maximum Voltage (V)
600
Tongue Angle
Straight
Product Type
Disconnect
Insulation Material
Nylon
Seam Type
Butted
Finish/Coating
Tin-Plated
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Dimensions

Overall Length
0.93 in
Width
0.35 in
Maximum Wire Insulation Diameter (In.)
0.13
Wire Strip Length (mm)
7.1
Minimum Wire Size (AWG)
#22
Minimum Copper Conductor Size (AWG)
#22
Maximum Wire Size (AWG)
#18
Overall Width (mm)
8.9
Insulation Diameter (In.)
0.13
Minimum Metric Conductor Size (mm²)
0.5
Tab Size (mm)
6.3 x 0.8
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (In.)
11933
Overall Length (mm)
23.6
Insulation Diameter (mm)
3.3
Maximum Wire Insulation Diameter (mm)
3.2
Maximum Copper Conductor Size (AWG)
#18
Overall Width (In.)
0.35
Tab Size (In.)
0.250 x 0.032
Overall Length (In.)
0.93

Description

Female Disconnect, double crimp, nylon fully insulated, 22 - 18 AWG, .250 x .032 tab size
