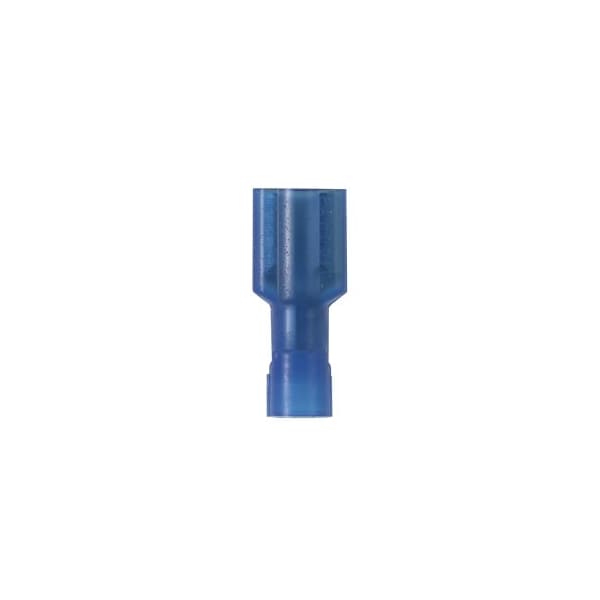

Female Disconnect, nylon fully insulated, 16, DNF14-206FIB-M, PK 1000

  • Mfr # DNF14-206FIB-M

  • Zoro # G2854777

product price:  $379.99
/pk 1000, $0.38/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF14-206FIB-M
Zoro #
G2854777
UPC #
7498382672
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Width
0.3"
Height
0.22 in
Insulation Diameter (In.)
0.16
Maximum Copper Conductor Size (AWG)
#14
Maximum Wire Size (AWG)
#14
Insulation Diameter (mm)
4.1
Tab Size (In.)
0.205/0.187 x 0.020
Minimum Wire Size (AWG)
#16
Overall Length (mm)
19.8
Overall Width (In.)
0.31
Minimum Metric Conductor Size (mm²)
1.5
Overall Length (In.)
0.78
Maximum Wire Insulation Diameter (mm)
4.1
Wire Strip Length (mm)
7.1
Wire Strip Length (In.)
11933
Tab Size (mm)
5.2/4.8 x 0.5
Maximum Metric Conductor Size (mm²)
2.5
Maximum Wire Insulation Diameter (In.)
0.16
Minimum Copper Conductor Size (AWG)
#16
Overall Width (mm)
7.9

Details

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Product Type
Disconnect
Maximum Voltage (V)
600
Finish/Coating
Tin-Plated
Barrel Type
Funnel
Maximum Operating Temperature (°F)
221
Flammability Rating
UL94-HB
Base Material
Brass
Maximum Operating Temperature (°C)
105
Disconnect Type
Female Disconnect
Insulation Material
Nylon
Tongue Angle
Straight
Maximum Voltage (kV)
0.6
Seam Type
Butted
Contact Plating
Tin
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Blue
Product Class
Disconnects

Description

Female Disconnect, nylon fully insulated, 16 - 14 AWG, .187/.205 x .020 tab size, funnel entry
