Shop PANDUIT

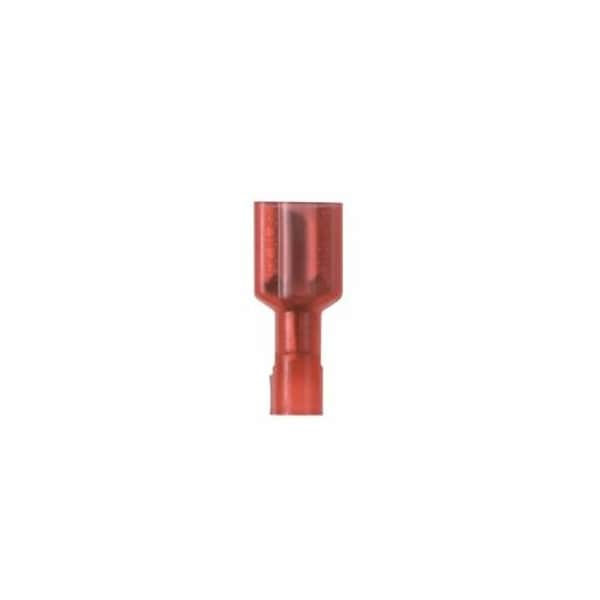

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-188FIB-C
  • Zoro # G0765550
product price:
$
82.55
/pk 100, $0.83/ea

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-188FIB-C
Zoro #
G0765550
UPC #
7498375979
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Height
0.16 in
Width
0.3"
Minimum Wire Size (AWG)
#22
Overall Length (In.)
0.78
Maximum Wire Insulation Diameter (In.)
0.14
Maximum Copper Conductor Size (AWG)
#18
Overall Length (mm)
19.8
Insulation Diameter (In.)
0.14
Wire Strip Length (mm)
7.1
Insulation Diameter (mm)
3.5
Minimum Copper Conductor Size (AWG)
#22
Minimum Metric Conductor Size (mm²)
0.5
Overall Width (In.)
0.29
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (In.)
11933
Tab Size (mm)
4.8 x 0.5
Tab Size (In.)
0.187 x 0.020
Maximum Wire Size (AWG)
#18
Maximum Wire Insulation Diameter (mm)
3.4
Overall Width (mm)
7.4

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Maximum Voltage (V)
600
Base Material
Brass
Tongue Angle
Straight
Product Type
Disconnect
Maximum Operating Temperature (°C)
105
Flammability Rating
UL94-HB
Maximum Voltage (kV)
0.6
Insulation Material
Nylon
Maximum Operating Temperature (°F)
221
Barrel Type
Funnel
Disconnect Type
Female Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Finish/Coating
Tin-Plated
Seam Type
Butted
Connector Details
1 x Quick Disconnect
Product Color
Red
Product Name
Terminal Connector
Contact Plating
Tin
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,PK100, Package Quantity 100

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
