Shop PANDUIT

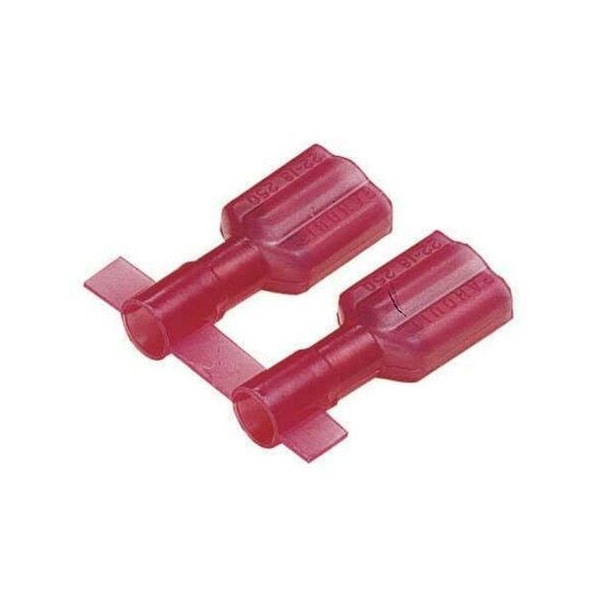

Female Disconnect, Nylon, 22-18AWG, PK3000

  • Mfr # DNF18-250FIB-3K

  • Zoro # G0765657

product price:
$
789.99
/pk of 3000, $0.26/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-4A) or CA-800EZ (CD-800-4) applicator
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.84 in
Features
Flame Retardant, Molded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-250FIB-3K
Zoro #
G0765657
UPC #
7498382690
Country of Origin
Mexico

Dimensions

Overall Length
0.84 in
Width
0.4"
Height
0.22 in
Maximum Wire Size (AWG)
#18
Overall Height (mm)
5.6
Maximum Wire Insulation Diameter (mm)
3.45
Minimum Metric Conductor Size (mm²)
0.5
Maximum Copper Conductor Size (AWG)
#18
Overall Height (In.)
0.22
Overall Width (mm)
8.9
Maximum Metric Conductor Size (mm²)
1
Overall Length (In.)
0.84
Wire Strip Length (In.)
11933
Maximum Wire Insulation Diameter (In.)
0.136
Overall Length (mm)
21.3
Wire Strip Length (mm)
7.1
Tab Size (In.)
0.250 x 0.032
Minimum Wire Size (AWG)
#22
Overall Width (In.)
0.35
Tab Size (mm)
6.3 x 0.8

Details

Item
Female Disconnect,Nylon,22-18AWG,PK3000
For Use With
Crimp press with CA9 (CD9-4A) or CA-800EZ (CD-800-4) applicator
Color Code
Red
Insulation Type
Fully Insulated
Features
Flame Retardant, Molded
Finish
Tinned
Tongue Angle
Straight
Insulation Material
Nylon
Maximum Operating Temperature (°F)
221
Disconnect Type
Female Disconnect
Barrel Type
Funnel
Maximum Voltage (V)
600
Maximum Voltage (kV)
0.6
Flammability Rating
UL94-HB
Standards Met
UL 310, CSA 22.2 No.153
Base Material
Brass
Maximum Operating Temperature (°C)
105
Finish/Coating
Tin-Plated
Product Type
Terminal Connector
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Color
Red
Product Name
Terminal Connector
Max Operating Temperature
105 degrees celsius
Product Class
Disconnects

Description

Female Disconnect,Nylon,22-18AWG,Package Quantity 3000

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
