  11. Female Disconnect, Red, 22-18AWG, PK100

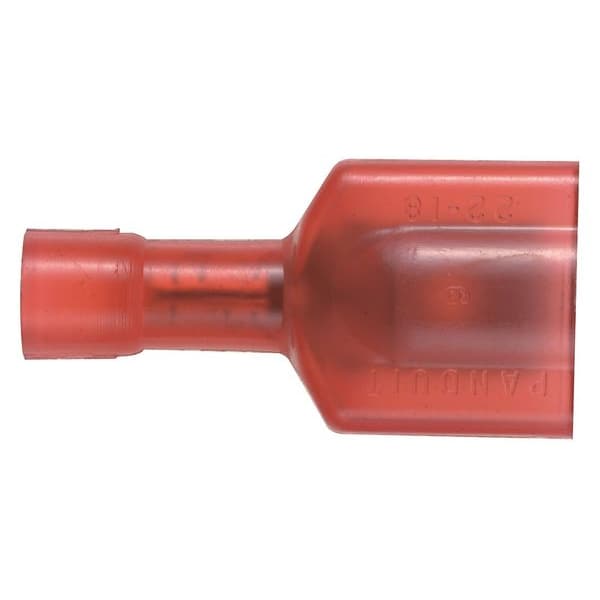

Panduit Female Disconnect, Red, 22-18AWG, PK100 DNF18-250FIB-C - main

Female Disconnect, Red, 22-18AWG, PK100

  • Mfr # DNF18-250FIB-C

  • Zoro # G0059897

product price: $94.39
/pk 100, $0.94/ea
Free Shipping & Returns

Key Features

Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Insulation Color
Red
Color Code
Red
Connection Type
Crimp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNF18-250FIB-C
Zoro #
G0059897
UPC #
074983827114
Country of Origin
Mexico

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.84 in
Barrel Inside Dia.
0.062 in
Width
0.4"
Tab Thickness
0.032 in
Maximum Wire Size
18 AWG
Barrel Inside Diameter
0.062 in
Strip Length
5/16 in
Tab Width
0.25 in
Minimum Wire Size
22 AWG
Maximum Wire Insulation Diameter (In.)
0.14
Overall Width (mm)
8.9
Overall Height (mm)
5.6
Tab Size (In.)
0.250 x 0.032
Maximum Wire Size (AWG)
#18
Minimum Metric Conductor Size (mm²)
0.5
Tab Size (mm)
6.3 x 0.8
Minimum Wire Size (AWG)
#22
Wire Strip Length (mm)
7.1
Maximum Copper Conductor Size (AWG)
#18
Overall Length (In.)
0.84
Overall Width (In.)
0.35
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (In.)
11933
Overall Height (In.)
0.22
Maximum Wire Insulation Diameter (mm)
3.6
Overall Length (mm)
21.3

Details

Item
Female Disconnect
Insulation
Full
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Insulation Color
Red
Color Code
Red
Connection Type
Crimp
Wire Range
22 to 18 AWG
Insulation Type
Nylon
Seam
Butted
Connector Type
Quick Disconnect
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Connection Material
Tin-Plated Brass
Standards
CSA 22.2 No.153, UL 310
Features
Flame Retardant
Contact Material
Brass
Contact Finish
Tin
Maximum Operating Temperature
221 Degrees F
Insulation Coverage
Full Coverage
Termination Style
Crimp
Minimum Operating Temperature
-60 Degrees F
UL 94 Flammability Rating
HB
RoHS Compliant
Yes
Terminal Type
Socket
Insulation Material
Nylon
Seam Style
Butted
Barrel Style
Funnel Entry
Maximum Voltage
600 V
Special Features
Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, Funnel Entry Design Allows for Faster Wire Insertion and Lower Installed Cost, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection
Maximum Voltage (V)
600
Product Type
Disconnect
Flammability Rating
UL94-HB
Maximum Operating Temperature (°C)
105
Barrel Type
Funnel
Base Material
Brass
Maximum Operating Temperature (°F)
221
Finish/Coating
Tin-Plated
Tongue Angle
Straight
Disconnect Type
Female Disconnect
Maximum Voltage (kV)
0.6
Standards Met
UL 310, CSA 22.2 No.153
Environmentally Friendly
Yes
Product Color
Red
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Name
Terminal Connector
Sub Brand
Pan-Term®
Packaging Type
Bottle

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Butted, Standards CSA 22.2 No.153, UL 310
