  11. Female Flag Discont, Bare, 16-14AWG, PK1000

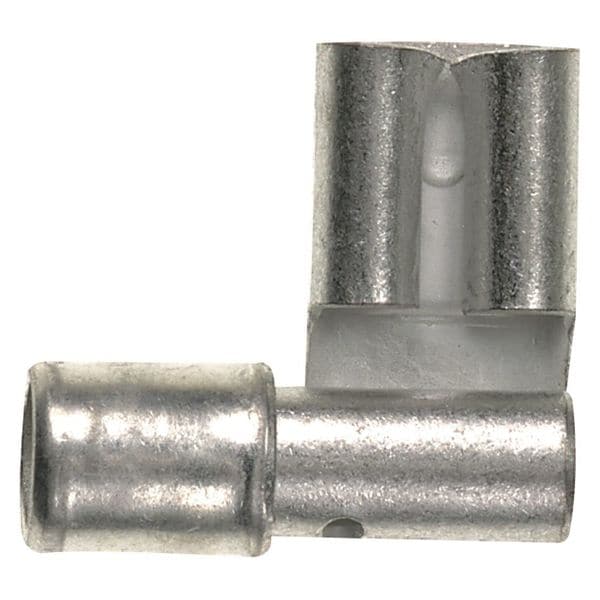

Panduit Female Flag Discont, Bare, 16-14AWG, PK1000 DR14-250-M - main

Female Flag Discont, Bare, 16-14AWG, PK1000

  • Mfr # DR14-250-M

  • Zoro # G0159078

product price: $305.99
/pk 1000, $0.31/ea
Free Shipping & Returns

Key Features

Insulation
None
Insulation Color
Bare
Insulation Type
Non-Insulated
Wire Range
16 to 14 AWG
Connection Type
Crimp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR14-250-M
Zoro #
G0159078
UPC #
074983827596
Country of Origin
Mexico

Dimensions

Overall Length
0.57 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.09 in
Tab Width
0.25 in
Barrel Inside Diameter
0.09 in
Barrel Size
Standard
Minimum Wire Size
16 AWG
Tab Thickness
0.032 in
Maximum Wire Size
14 AWG
Strip Length
1/4 in

Details

Item
Female Flag Disconnect
Insulation
None
Insulation Color
Bare
Insulation Type
Non-Insulated
Wire Range
16 to 14 AWG
Connection Type
Crimp
Seam
Sleeved Barrel
Max. Voltage
300 V
Max. Temp.
302 Degrees F
Standards
C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522
Connection Material
Tin-Plated Brass
Seam Style
Sleeved Barrel
Maximum Voltage
600 V
Connection Orientation
90 Degrees Angled
Insulation Material
None
Terminal Type
Socket
Special Features
Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Right Angle Design for Use in Limited Space Applications, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant
Barrel Style
Sleeved Barrel
Contact Material
Brass
Insulation Coverage
None
Termination Style
Crimp
Minimum Operating Temperature
-60 Degrees F
Maximum Operating Temperature
302 Degrees F
Contact Finish
Tin
RoHS Compliant
Yes

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Flag Quick Disconnect, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Seamless, Standards ARRA, CSA LR31212, C22.2 No.153, RoHS, UL 310, UL 20H3 E78522
