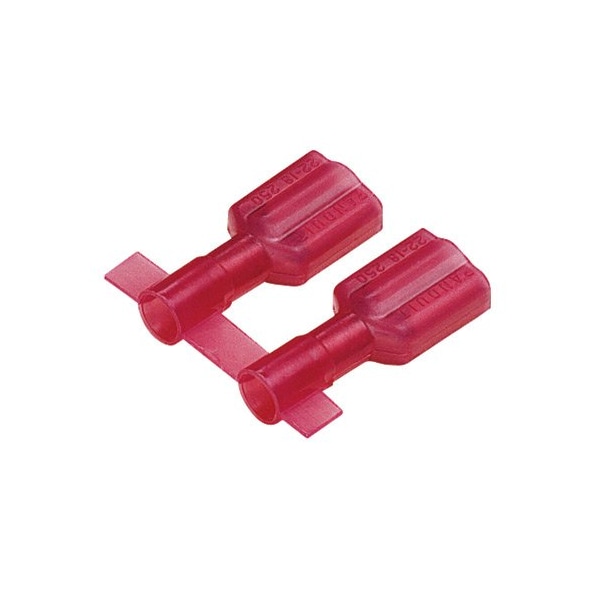

Female Disconnect, Nyln fully Insul, 22-18, DNF18-110FIB-3K, PK 3000
- Mfr # DNF18-110FIB-3K
- Zoro # G3037285
product price:Â
$
960.99
/pk of 3000, $0.32/ea
Free Shipping & Returns
Key Features
For Use With
Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator
Color Code
Red
Insulation Type
Fully Insulated
Overall Length
0.71 in
Features
Molded, Flame Retardant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DNF18-110FIB-3K
- Zoro #
- G3037285
- UPC #
- 7498382679
- Country of Origin
- Mexico
- For Use With
- Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator
- Color Code
- Red
- Insulation Type
- Fully Insulated
- Features
- Molded, Flame Retardant
- Finish
- Tinned
- Barrel Type
- Funnel
- Maximum Operating Temperature (°F)
- 221
- Tongue Angle
- Straight
- Product Type
- Disconnect
- Finish/Coating
- Tin-Plated
- Flammability Rating
- UL94-HB
- Maximum Voltage (V)
- 600
- Seam Type
- Butted
- Disconnect Type
- Female Disconnect
- Maximum Operating Temperature (°C)
- 105
- Base Material
- Brass
- Insulation Material
- Nylon
- Standards Met
- UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
- Maximum Voltage (kV)
- 0.6
- Contact Plating
- Tin
- Product Name
- Terminal Connector
- Connector Details
- 1 x Quick Disconnect
- Product Color
- Red
- Product Class
- Disconnects
Dimensions
- Overall Length
- 0.71 in
- Width
- 0.2"
- Height
- 0.15 in
- Tab Size (mm)
- 2.8 x 0.8
- Overall Width (mm)
- 4.8
- Minimum Metric Conductor Size (mm²)
- 0.5
- Overall Width (In.)
- 0.19
- Overall Length (mm)
- 18
- Tab Size (In.)
- 0.110 x 0.032
- Maximum Wire Insulation Diameter (mm)
- 3
- Maximum Metric Conductor Size (mm²)
- 1
- Wire Strip Length (mm)
- 7.1
- Insulation Diameter (In.)
- 0.12
- Maximum Copper Conductor Size (AWG)
- #18
- Insulation Diameter (mm)
- 12
- Maximum Wire Insulation Diameter (In.)
- 0.12
- Minimum Wire Size (AWG)
- #22
- Maximum Wire Size (AWG)
- #18
- Wire Strip Length (In.)
- 11933
- Overall Length (In.)
- 0.71
- Minimum Copper Conductor Size (AWG)
- #22
Description
Female Disconnect, nylon fully insulated, 22 - 18 AWG, .110 x .032 tab size, funnel entry
