  11. Ferrule, 14 AWG, Non-Insul, 15/32in., PK1000

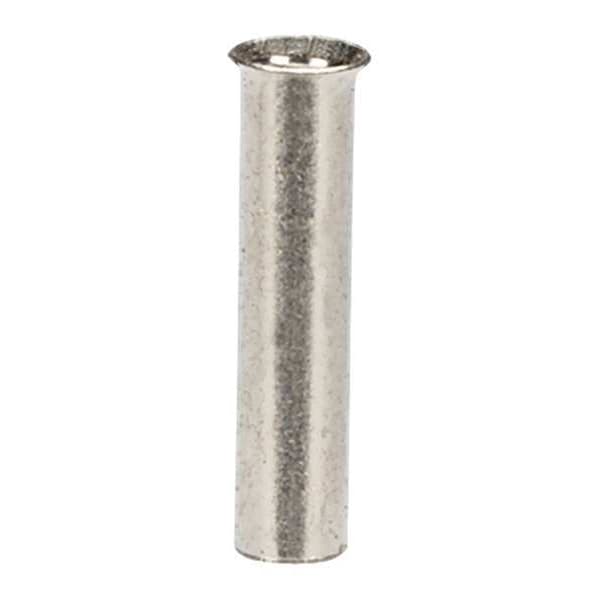

Panduit Ferrule, 14 AWG, Non-Insul, 15/32in., PK1000 F80-12-M - main

Ferrule, 14 AWG, Non-Insul, 15/32in., PK1000

  • Mfr # F80-12-M

  • Zoro # G2600879

product price: $108.29
/pk 1000, $0.11/ea
Free Shipping & Returns

Key Features

Wire Range
14 AWG
Insulation Type
Non-Insulated
Insulation Color
Bare
Insertion Length
15/32 in
Overall Length
0.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F80-12-M
Zoro #
G2600879
UPC #
074983763382
Country of Origin
Germany

Dimensions

Insertion Length
15/32 in
Overall Length
0.47 in
Length
0.5"
Barrel Diameter
0.1 in
Strip Length
15/32 in
Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Ferrule Diameter
0.1 in
Inside Dia.
0.09 in
Maximum Copper Conductor Size (AWG)
#14
Overall Length (mm)
12
Wire Strip Length (In.)
15/32
Outer Diameter (mm)
2.5
Minimum Copper Conductor Size (AWG)
#14
Overall Length (In.)
0.47
Inside Diameter (mm)
2.2
Maximum Metric Conductor Size (mm²)
2.5
Inside Diameter (In.)
0.09
Copper Conductor Size (AWG)
#14
Outer Diameter (In.)
0.1
Wire Strip Length (mm)
12
Maximum Metric Conductor Size (mm²)
2.5

Details

Item
Ferrule
Wire Range
14 AWG
Insulation Type
Non-Insulated
Insulation Color
Bare
Max. Temp.
302 Degrees F
Connection Material
Tinned
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F
Standards
CSA C22.2 No. 291-14, DIN 46228 Part 1
Color
Metallic
Finish
Tin-Plated
For Use With
CT-1002, CT-1003, CT-1123, CT-1090, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Material
Copper
Contact Finish
Tin
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F
Insulation Material
None
Maximum Conductors
1
Compatible Manufacturer Model Number
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170
Barrel Material
Copper
Compatible with Series
CT
Barrel Finish
Tin Plated
Ferrule Material
Copper
Maximum Operating Temperature
302 Degrees F
Compatible with Product Type
Terminal Block
Contact Material
Copper
Product Name
Electric Wire Ferrule
Product Material
Copper
Environmentally Friendly
Yes
Product Type
Electric Wire Ferrule
Product Color
Metallic
CSA Temperature Rating (°C)
150
Packaging Type
Bag
Finish/Coating
Tin-Plated
Ferrule Type
Single Wire Standard
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Color Code
Metallic
Maximum Operating Temperature (°F)
302
UL Temperature Rating (°C)
150
Base Material
Copper
Sub Brand
Pan-Term®
Maximum Operating Temperature (°C)
150
UL Temperature Rating (°C)
150
CSA Temperature Rating (°C)
150
Maximum Operating Temperature (°F)
302
Maximum Operating Temperature (°C)
150

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.1 in, Ferrule Material Copper, Insertion Length 15/32 in, Insulation Color Bare, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Minimum Wire Size 14 AWG, Maximum Wire Size 14 AWG, Standards CSA C22.2 No. 291-14, DIN 46228 Part 1, Barrel Diameter 0.1 in, Barrel Finish Tin Plated, Barrel Material Copper, Compatible Grainger Part Number 376U38, 376U39, 377M39, 38YU65, 38YU66, 38YU67
