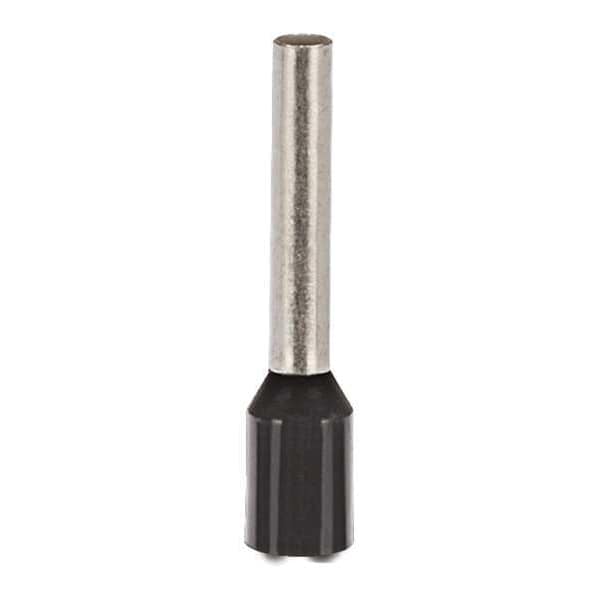

  11. Ferrule, 16 AWG, PP, 5/8in., PK500
Panduit Ferrule, 16 AWG, PP, 5/8in., PK500 FSD78-12-D - main

Ferrule, 16 AWG, PP, 5/8in., PK500

  • Mfr # FSD78-12-D

  • Zoro # G2276578

product price: $138.99
/pk 500, $0.28/ea
Free Shipping & Returns

Key Features

Wire Range
16 AWG
Insulation Type
Self-Insulated
Insulation Color
Black
Insertion Length
5/8 in
Overall Length
0.73 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSD78-12-D
Zoro #
G2276578
UPC #
074983762576
Country of Origin
Germany

Dimensions

Insertion Length
5/8 in
Overall Length
0.73 in
Length
0.7"
Barrel Length
0.26 in
Maximum Wire Size
16 AWG
Barrel Diameter
0.12 in
Strip Length
5/8 in
Minimum Wire Size
16 AWG
Ferrule Diameter
0.08 in
Inside Dia.
0.07 in
Minimum Metric Conductor Size (mm²)
1.5
Maximum Wire Insulation Diameter (mm)
3
Minimum Copper Conductor Size (AWG)
#16
Maximum Copper Conductor Size (AWG)
#16
Copper Conductor Size (AWG)
#16
Pin Length (In.)
0.47
Wire Strip Length (mm)
15.9
Inside Diameter (mm)
1.8
Overall Length (In.)
0.73
Maximum Wire Insulation Diameter (In.)
0.12
Maximum Metric Conductor Size (mm²)
1.5
Inside Diameter (In.)
0.07
Overall Length (mm)
18.5
Wire Strip Length (In.)
45054
Pin Length (mm)
12
Minimum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
1.5

Details

Item
Ferrule
Wire Range
16 AWG
Insulation Type
Self-Insulated
Insulation Color
Black
Max. Temp.
221 Degrees F
Standards
CSA C22.2 No. 291-14, DIN 46228, UL 486F
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Connection Material
Tinned
Color
Black
Finish
Tin-Plated
For Use With
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Material
Copper
Ferrule Material
Copper
Maximum Conductors
1
Contact Finish
Tin
Minimum Operating Temperature
-60 Degrees F
Compatible with Series
CT
Contact Material
Copper
Barrel Material
Copper
Insulation Material
Polypropylene
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Compatible Manufacturer Model Number
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Termination Style
Crimp
Maximum Operating Temperature
221 Degrees F
Barrel Finish
Tin Plated
Compatible with Product Type
Terminal Block
Product Type
Electric Wire Ferrule
Environmentally Friendly
Yes
Product Color
Black
Product Material
Polypropylene
Product Name
Electric Wire Ferrule
Maximum Operating Temperature (°C)
105
Color Code
Black
CSA Temperature Rating (°C)
105
Maximum Operating Temperature (°F)
221
Minimum Operating Temperature (°F)
-60
Finish/Coating
Tin-Plated
Minimum Operating Temperature (°C)
-54
Ferrule Type
Single Wire Standard
Base Material
Copper
UL Temperature Rating (°C)
105
Flammability Rating
UL94-HB
Cover Material
Polypropylene
Packaging Type
Bag
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Sub Brand
Pan-Term®
UL Temperature Rating (°C)
105
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Minimum Operating Temperature (°F)
-60
Minimum Operating Temperature (°C)
-54
CSA Temperature Rating (°C)
105

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.08 in, Ferrule Material Copper, Insertion Length 5/8 in, Insulation Color Black, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.26 in, Barrel Material Copper
