  11. Ferrule, 18 AWG, PP, 3/8in., PK500
Shop All Ferrules
Panduit

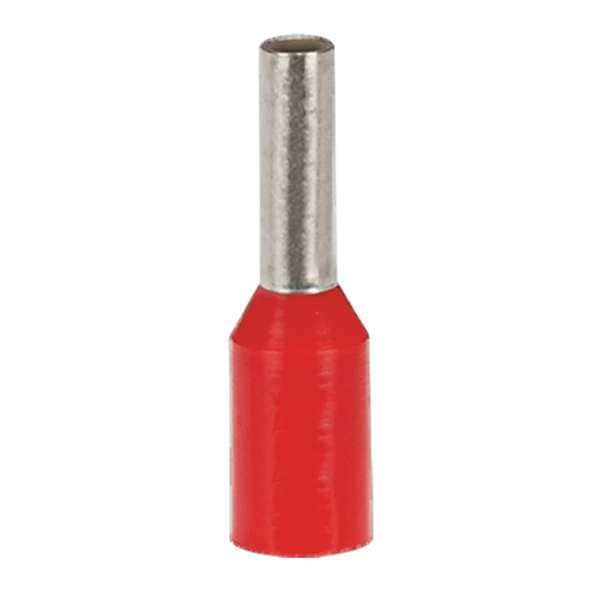

Ferrule, 18 AWG, PP, 3/8in., PK500

product price: $84.35
/pk 500, $0.17/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Range 18 AWG
  • Insulation Type Self-Insulated
  • Insulation Color Red
  • Insertion Length 3/8 in
  • Overall Length 0.49 in
See all product information

Product Information

  • Brand Panduit
  • MFR # FSD77-6-D
  • Zoro # G2276596
  • UPC #
    074983762514
  • Country of Origin Germany
  • Category Ferrules

Dimensions

Insertion Length 3/8 in
Overall Length 0.49 in
Length 0.5"
For Wire Size 18 AWG
Minimum Wire Size 18 AWG
Maximum Wire Size 18 AWG
Strip Length 3/8 in
Barrel Diameter 0.12 in
Barrel Length 0.25 in
Ferrule Diameter 0.07 in
Inside Dia. 0.06 in
Minimum Metric Conductor Size (mm²) 1
Pin Length (In.) 0.24
Inside Diameter (In.) 0.06
Inside Diameter (mm) 1.5
Maximum Metric Conductor Size (mm²) 1
Overall Length (mm) 12.5
Wire Strip Length (In.) 44993
Maximum Wire Insulation Diameter (In.) 0.12
Maximum Wire Insulation Diameter (mm) 3
Pin Length (mm) 6
Wire Strip Length (mm) 9.5
Overall Length (In.) 0.49
Maximum Metric Conductor Size (mm²) 1
Minimum Metric Conductor Size (mm²) 1

Details

Item Ferrule
Wire Range 18 AWG
Insulation Type Self-Insulated
Insulation Color Red
Max. Temp. 221 Degrees F
Connection Material Tinned
Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F
Features Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Material Copper
Color Red
Finish Tin-Plated
For Use With CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Termination Style Crimp
Maximum Conductors 1
Barrel Finish Tin Plated
Compatible Manufacturer Model Number CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Minimum Operating Temperature -60 Degrees F
Ferrule Material Copper
Insulation Coverage Partially Insulated
Special Features Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Contact Finish Tin
Barrel Material Copper
Contact Material Copper
Compatible with Product Type Terminal Block
Compatible with Series CT
Insulation Material Polypropylene
Maximum Operating Temperature 221 Degrees F
Product Type Electric Wire Ferrule
Product Material Copper
Environmentally Friendly Yes
Product Color Red
Product Name Electric Wire Ferrule
Minimum Operating Temperature (°F) -60
Standards Met DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Finish/Coating Tin-Plated
Maximum Operating Temperature (°C) 105
Color Code Red
Maximum Operating Temperature (°F) 221
Packaging Type Bag
Sub Brand Pan-Term®
Flammability Rating UL94-HB
CSA Temperature Rating (°C) 105
Ferrule Type Single Wire Standard
UL Temperature Rating (°C) 105
Base Material Copper
Cover Material Polypropylene
Minimum Operating Temperature (°C) -54
CSA Temperature Rating (°C) 105
Minimum Operating Temperature (°F) -60
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
UL Temperature Rating (°C) 105
Minimum Operating Temperature (°C) -54

Description

Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.07 in, Ferrule Material Copper, Insertion Length 3/8 in, Insulation Color Red, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 18 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.25 in, Barrel Material Copper
