Shop PANDUIT

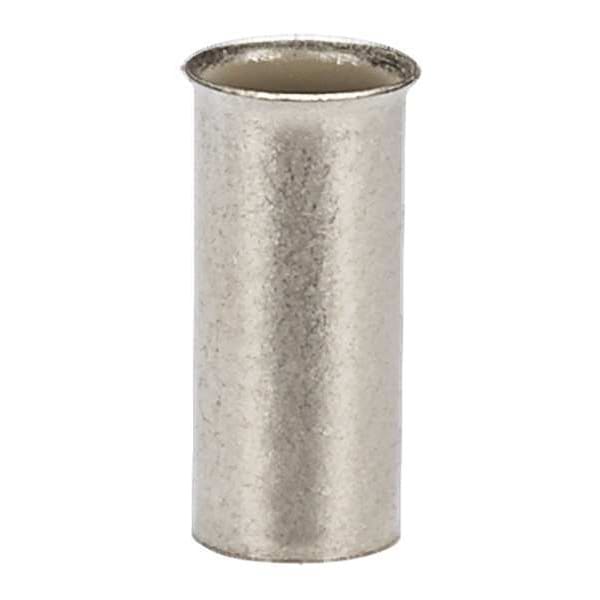

Ferrule, 8 AWG, Non-Insul, 15/32in., PK500

  • Mfr # F83-12-D

  • Zoro # G2600845

product price:  $131.99
/pk 500, $0.26/ea
Free Shipping & Returns

Key Features

Wire Range
8 AWG
Insulation Type
Non-Insulated
Insulation Color
Bare
Insertion Length
15/32 in
Overall Length
0.47 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F83-12-D
Zoro #
G2600845
UPC #
074983763511
Country of Origin
Germany

Dimensions

Insertion Length
15/32 in
Overall Length
0.47 in
Length
0.5"
Maximum Wire Size
8 AWG
Barrel Diameter
0.19 in
Ferrule Diameter
0.19 in
Minimum Wire Size
8 AWG
Strip Length
15/32 in
Inside Dia.
0.18 in
Copper Conductor Size (AWG)
#8
Maximum Copper Conductor Size (AWG)
#8
Pin Length (mm)
12
Pin Length (In.)
0.47
Wire Strip Length (In.)
15/32
Inside Diameter (In.)
0.18
Overall Length (mm)
12
Outer Diameter (In.)
0.19
Inside Diameter (mm)
4.5
Minimum Metric Conductor Size (mm²)
10
Overall Length (In.)
0.47
Minimum Copper Conductor Size (AWG)
#8
Maximum Metric Conductor Size (mm²)
10
Outer Diameter (mm)
4.9
Wire Strip Length (mm)
12
Maximum Metric Conductor Size (mm²)
10
Minimum Metric Conductor Size (mm²)
10
Wire Rope Length
0.47 in

Details

Item
Wire Ferrule
Wire Range
8 AWG
Insulation Type
Non-Insulated
Insulation Color
Bare
Max. Temp.
302 Degrees F
Connection Material
Tinned
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F
Standards
CSA C22.2 No. 291-14, DIN 46228, UL 486F
Finish
Tin-Plated
For Use With
CT-1003, CT-1004, CT-1090, CT-1123, CT-1104, CT-1160, CT-1170,CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH)
Color
Metallic
Material
Copper
Contact Finish
Tin
Maximum Conductors
1
Compatible Manufacturer Model Number
CT-1003, CT-1004, CT-1090, CT-1104, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH)
Barrel Finish
Tin Plated
Compatible with Product Type
Terminal Block
Termination Style
Crimp
Maximum Operating Temperature
302 Degrees F
Compatible with Series
CT
Ferrule Material
Copper
Insulation Material
None
Barrel Material
Copper
Contact Material
Copper
Minimum Operating Temperature
-60 Degrees F
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F
Product Type
Electric Wire Ferrule
Product Material
Copper
Environmentally Friendly
Yes
Product Color
Metallic
Product Name
Electric Wire Ferrule
Packaging Type
Bag
Color Code
Metallic
UL Temperature Rating (°C)
150
Minimum Operating Temperature (°F)
-60
Maximum Operating Temperature (°F)
302
Ferrule Type
Single Wire Standard
Base Material
Copper
Sub Brand
Pan-Term®
Minimum Operating Temperature (°C)
-54
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Maximum Operating Temperature (°C)
150
CSA Temperature Rating (°C)
150
Finish/Coating
Tin-Plated
Minimum Operating Temperature (°F)
-60
Maximum Operating Temperature (°F)
302
CSA Temperature Rating (°C)
150
UL Temperature Rating (°C)
150
Minimum Operating Temperature (°C)
-54
Maximum Operating Temperature (°C)
150
Series
CT

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.19 in, Ferrule Material Copper, Insertion Length 15/32 in, Insulation Color Bare, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.19 in, Barrel Finish Tin Plated, Barrel Material Copper
