Shop PANDUIT

Ferrule, Insul, 14 Awg, 8mmpin, Bu, PK500

  • Mfr # FSD80-8-DK
  • Zoro # G0422053
product price:
$
115.99
/pk of 500, $0.23/ea
Free Shipping & Returns

Key Features

Wire Range
14 AWG
Overall Length
0.57 in
Max. Temp.
105 Degrees C
Standards
DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FSD80-8-DK
Zoro #
G0422053
UPC #
7498333345
Country of Origin
Germany

Dimensions

Overall Length
0.57 in
Inside Dia.
0.09 in
Maximum Wire Insulation Diameter (In.)
0.15
Maximum Copper Conductor Size (AWG)
#14
Wire Strip Length (mm)
10
Inside Diameter (mm)
2.3
Outer Diameter (mm)
2.6
Maximum Metric Conductor Size (mm²)
2.5
Pin Length (mm)
8
Maximum Wire Insulation Diameter (mm)
3.9
Overall Length (mm)
14.5
Inside Diameter (In.)
0.09
Copper Conductor Size (AWG)
#14
Outer Diameter (In.)
0.1
Wire Strip Length (In.)
0.39
Pin Length (In.)
0.31
Minimum Copper Conductor Size (AWG)
#14
Overall Length (In.)
0.57
Outside Diameter Inches
0.1 in

Details

Item
Ferrule,Insul,14 Awg,8mmpin,Bu,PK500
Wire Range
14 AWG
Max. Temp.
105 Degrees C
Standards
DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
Material
Copper
Finish
Tin-Plated
Color
Blue
Finish/Coating
Tin-Plated
Base Material
Copper
Flammability Rating
UL94-HB
CSA Temperature Rating (°C)
105
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Packaging Type
Ferrules on a Reel
Product Type
Covered Single Wire Ferrule on Reel
Standards Met
DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
Color Code
Blue
For Use With
CP-881, APM-MRSP1516JMD
Ferrule Type
Single Wire Standard
Cover Material
Polypropylene
Sub Brand
Reel Smartâ„¢
Product Class
Wire Termination
Min Operating Temperature
-51 degrees Celsius
Max Operating Temperature
105 degrees Celsius

Description

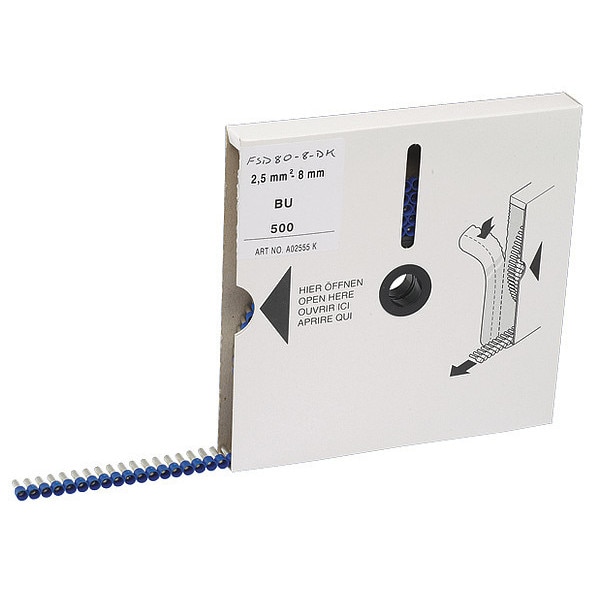

Insulated ferrules, single wire blue DIN end sleeve on mini-reel, 14 AWG (2.5mm2), 0.31 (8.0mm) pin length.
