  11. Ferrule, Insulated, 18 AWG, PK500

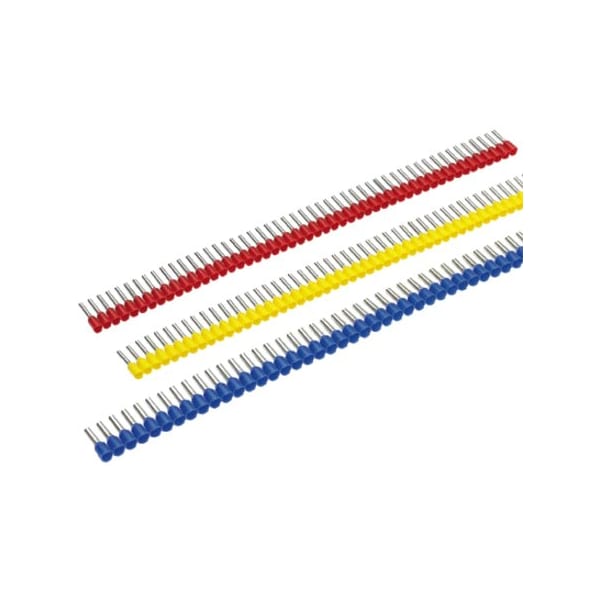

Panduit Ferrule, Insulated, 18 AWG, PK500 FSD76-8-DSL8 - main

Ferrule, Insulated, 18 AWG, PK500

  • Mfr # FSD76-8-DSL8

  • Zoro # G0767081

product price: $45.15
/pk 500, $0.09/ea

Key Features

Wire Range
18 AWG
Overall Length
0.55 in
Max. Temp.
105°C
Standards
DIN 46228 Part 4, CSA C22.2 No. 291-14
Inside Dia.
0.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSD76-8-DSL8
Zoro #
G0767081
UPC #
7498300988
Country of Origin
Denmark

Dimensions

Overall Length
0.55 in
Inside Dia.
0.05 in
Length
0.6"
Maximum Metric Conductor Size (mm²)
0.75
Outer Diameter (In.)
0.06
Wire Strip Length (mm)
10
Copper Conductor Size (AWG)
#18
Maximum Wire Insulation Diameter (mm)
2.7
Pin Length (In.)
0.31
Inside Diameter (In.)
0.05
Outer Diameter (mm)
1.6
Pin Length (mm)
8
Maximum Wire Insulation Diameter (In.)
0.11
Wire Strip Length (In.)
0.39
Inside Diameter (mm)
1.3
Minimum Copper Conductor Size (AWG)
#18
Overall Length (mm)
14
Overall Length (In.)
0.55
Maximum Copper Conductor Size (AWG)
#18

Details

Item
Ferrule,Insulated,18 AWG,PK500
Wire Range
18 AWG
Max. Temp.
105°C
Standards
DIN 46228 Part 4, CSA C22.2 No. 291-14
Finish
Tin-Plated
Material
Copper
Color
Gray
For Use With
CT-1000
Color Code
Gray
Maximum Operating Temperature (°C)
105
Standards Met
DIN 46228 Part 4, CSA C22.2 No. 291-14
Product Type
Covered Single Wire Ferrule on Strip
Ferrule Type
Single Wire Standard
CSA Temperature Rating (°C)
105
Base Material
Copper
Flammability Rating
UL94-HB
Maximum Operating Temperature (°F)
221
Sub Brand
Pan-Term®
Cover Material
Polypropylene
Packaging Type
Ferrules on a Strip
Finish/Coating
Tin-Plated
Product Color
Gray
Product Name
Electric Wire Ferrule
Material Details
Copper - Base, Polypropylene - Insulation
Product Material
Copper, Polypropylene
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Ferrule,Insulated,18 AWG,PK500, Package Quantity 500

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
