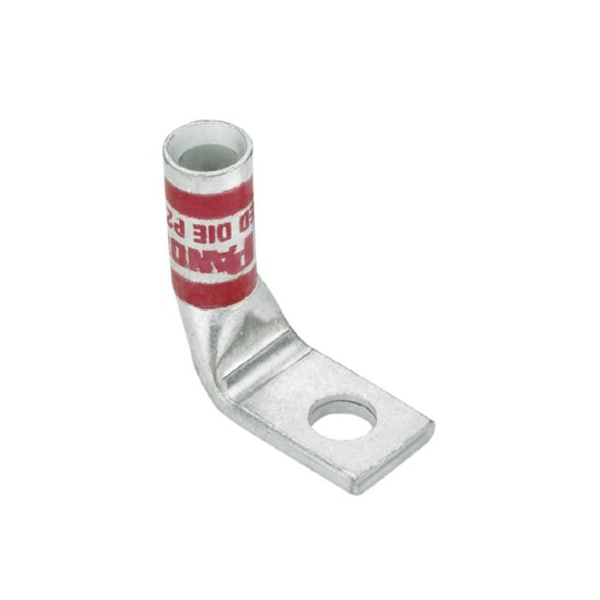

Panduit Lug Compression Connector, 1/0 AWG Max, Standard Barrel, Copper, Pink LCA1/0-56F-X - main

Lug Compression Connector, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCA1/0-56F-X

  • Zoro # G0771397

product price: $10.35
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
Standard Barrel
Width
0.76"
Material
Copper
Length
1.51"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA1/0-56F-X
Zoro #
G0771397
UPC #
7498355919
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.76"
Length
1.51"
Overall Length
1.51 in
Tongue Thickness (In.)
0.12
Wire Strip Length (mm)
25.4
Overall Length (In.)
1.51
Copper Code Conductor Size (AWG)
36526
Tongue Width (mm)
19.3
Barrel Length (mm)
23.9
Stud Hole Size (In.)
45062
Tongue Width (In.)
0.76
Wire Strip Length (In.)
1
Tongue Thickness (mm)
3
Barrel Length (In.)
0.94
Overall Length (mm)
38.4
Stud Hole Size (mm)
7.9
For Wire Size
1/0 AWG
Barrel Size
Standard
Tongue Width
0.76 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Pink
Item
Lug Compression Connector
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Material
Tin
Connection Type
1 x Terminal
Features
90° Angled Connector, Corrosion Resistant
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Lugs
Maximum Voltage (kV)
35
Burndy Die Index Number
12
Panduit Die Index Number
42
Tongue Type
Standard
Tongue Angle
90 Degrees Angled
Base Material
Copper
Finish/Coating
Tin-Plated
Connector Plating
Tin
Product Material
Copper
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,1/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
